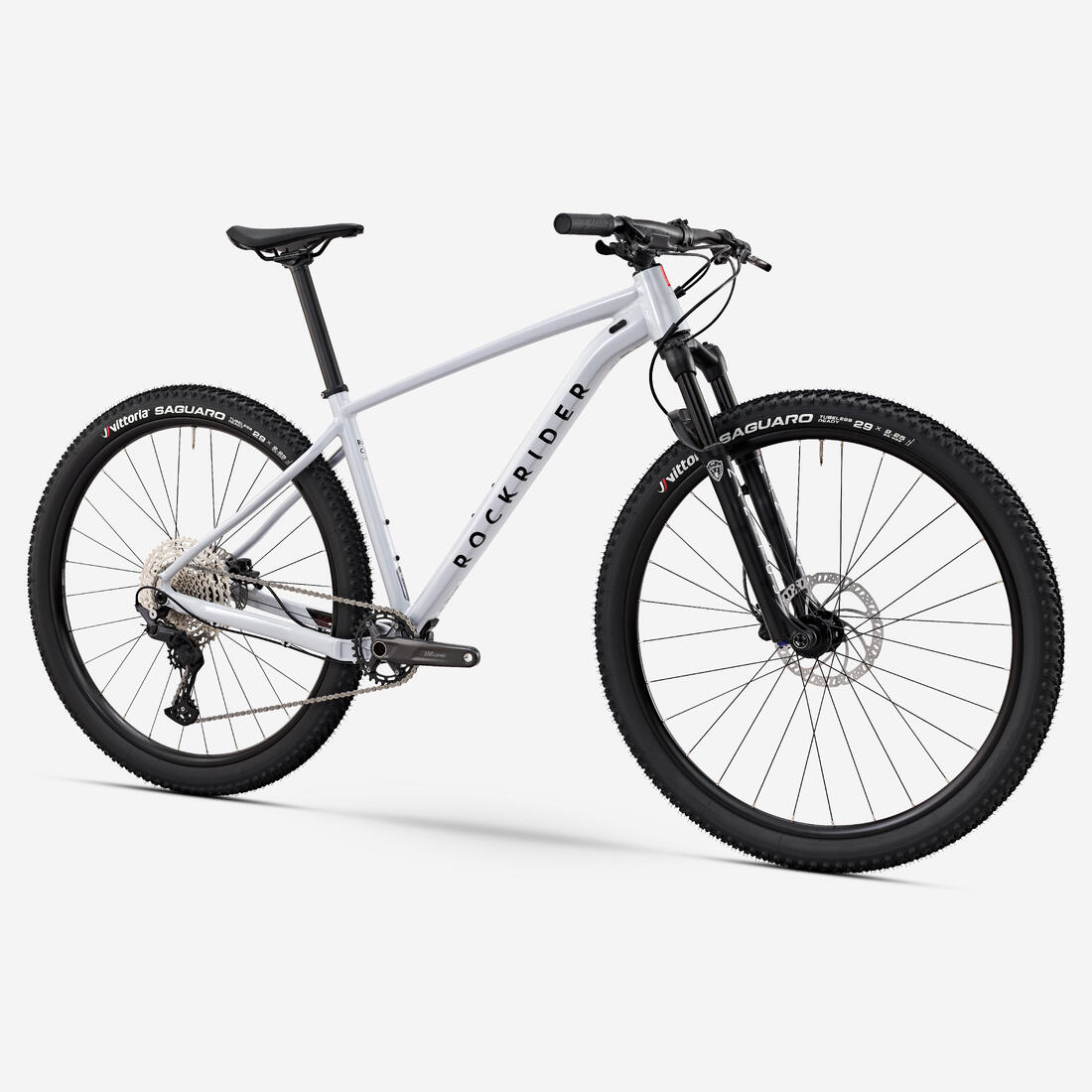

This mountain bike is designed for starting cross country (XC) mountain biking.
Weight
S: 12.3 kg
M: 12,4 kg
L: 12.5 kg
XL: 12.7 kg
Weight without pedals, with inner tubes

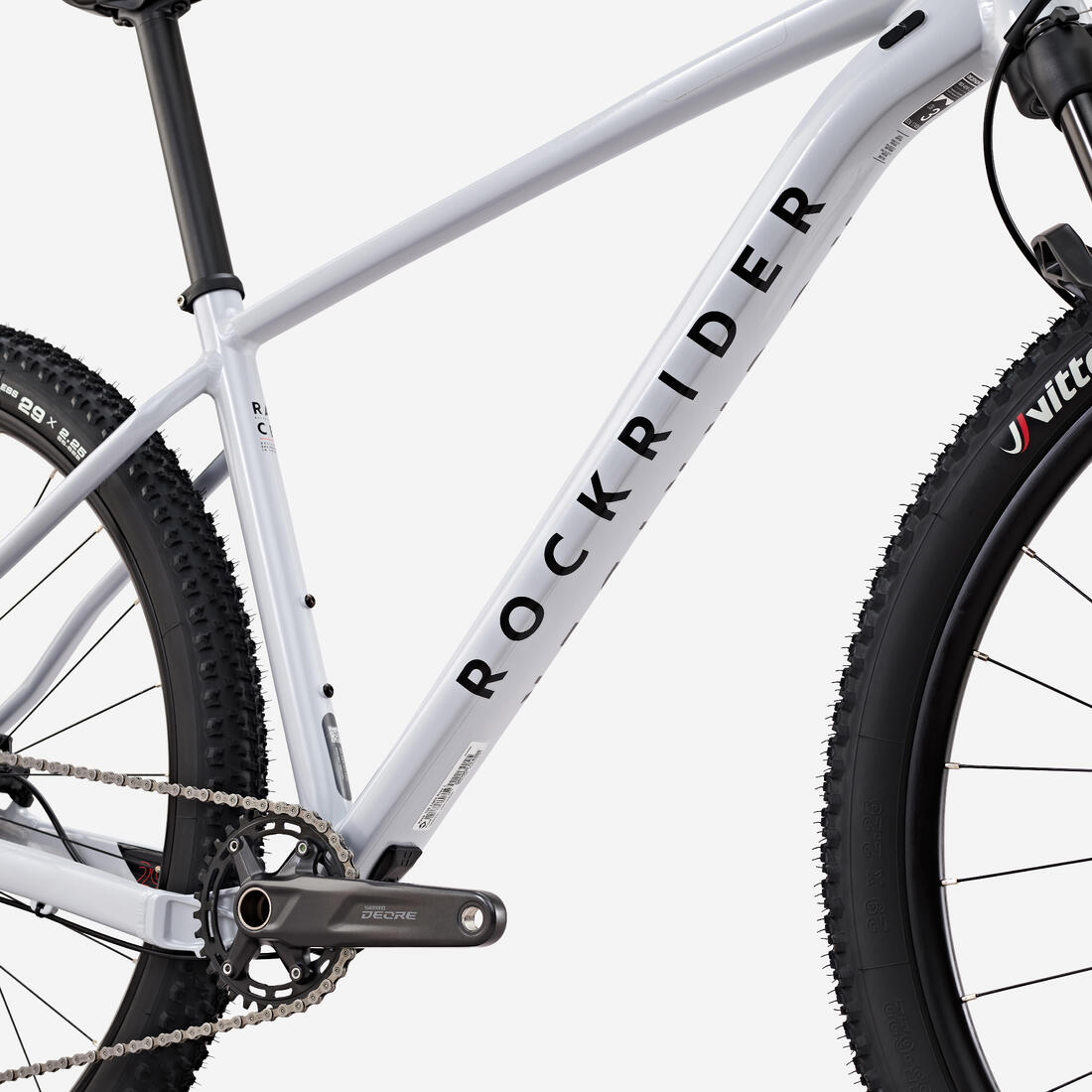

Frame
6061 and 6013 aluminium with triple-butted tubes
1610 g in size M (gross, without derailleur hanger)
31.6 mm seat post
Compatible with dropper posts (internal routing)
Thru axle
BOOST format
PressFit 92 bottom bracket
Compatible with 2 bottle cages
Sram UDH derailleur hanger

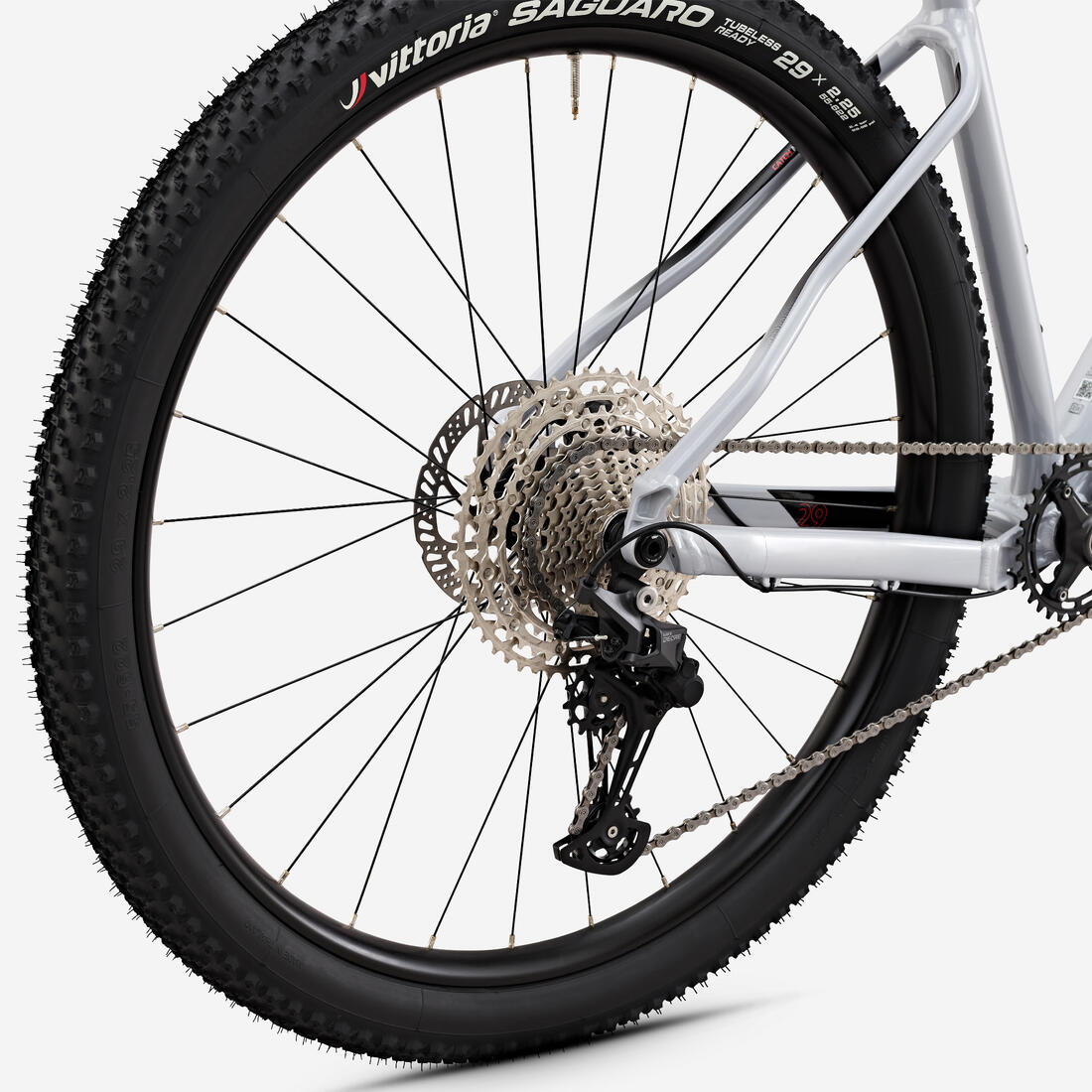

Drivetrain
Shimano Deore M5000 rear derailleur
Shimano Deore M5100 shifter
Shimano Deore M5100 bottom bracket (170 mm in S & M and 175 mm in L & XL)
32 chainring guard (compatible with 30, 34 & 36 teeth)
Shimano Deore M5100 cassette
Shimano HG601 chain
Sram PF 92 casing
Fork
Manitou Markhor 100 mm
Dampers: 30 mm, aluminium 6000
Blades: reverse arch
Wheel size: 29"
Air cartridge technology: TS Air
Compression damper: Kwik Toggle, adjustable to 2 positions (Open, Locked)
Rebound damper: TPC, adjustable
Axle: 15 mm x 110 mm
Disc dimensions: 160 mm for post mount, 203 mm max
Max tyre size: 80 mm
Weight: 1878 g
Wheels
29-inch Rockrider Race AL Tubeless Ready wheels
Weight: 1870 g
Asymmetrical profile
HG freehub
Inner rim width: 27 mm
6-bolt rotors
28 double-butted spokes
Sealed cartridge bearings
BOOST axles: 15 mm front and 12 mm rear
Fitted with watertight rim tape: tubeless ready
Sold without tubeless valves
Brakes
Tektro M276 hydraulic brake
Front disc: TKR 180 mm rotor
Rear disc: TKR 160 mm rotor
6-hole fastening

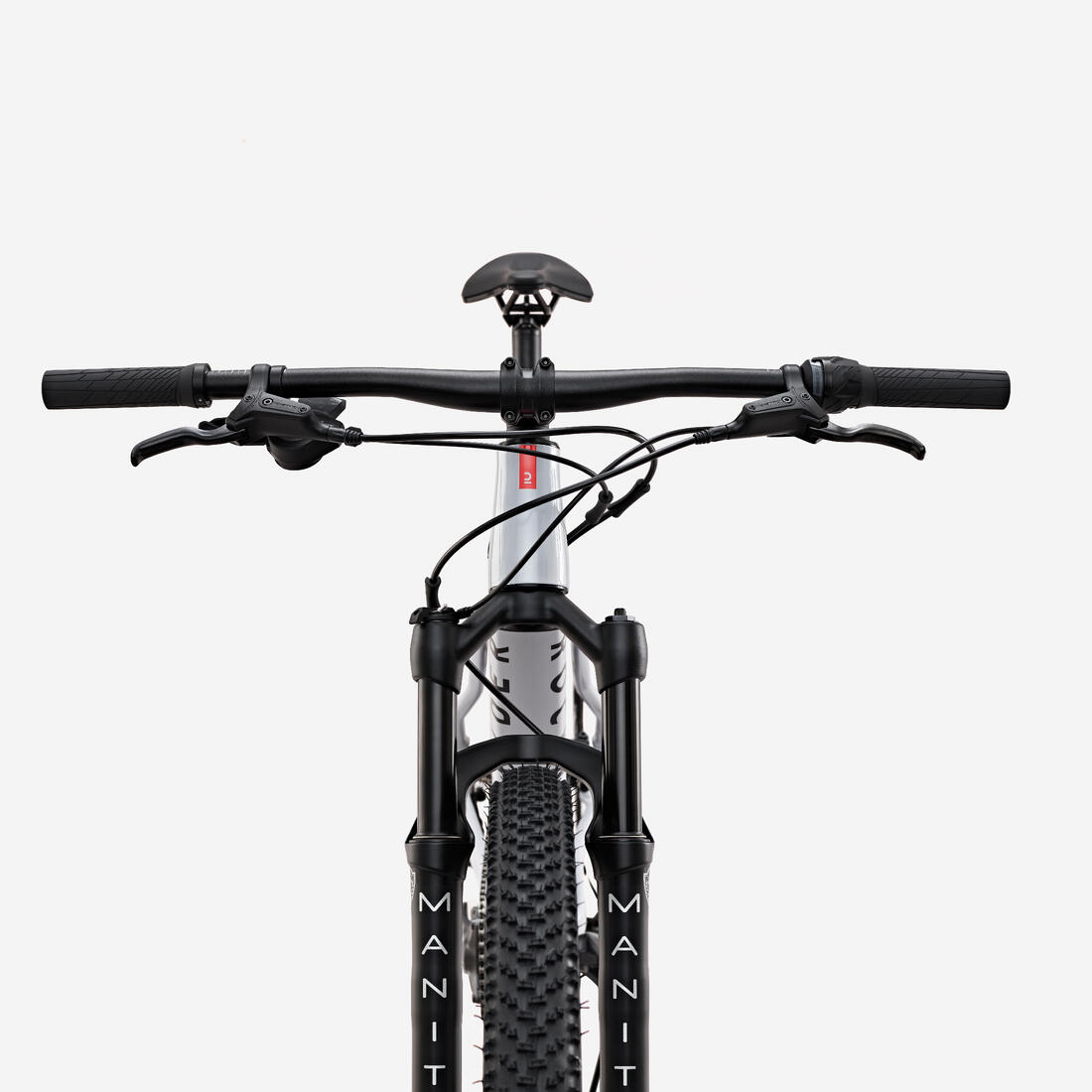

Riding position
Rockrider aluminium stem
-7° angle
60 mm in size S and M
70 mm in size L and XL

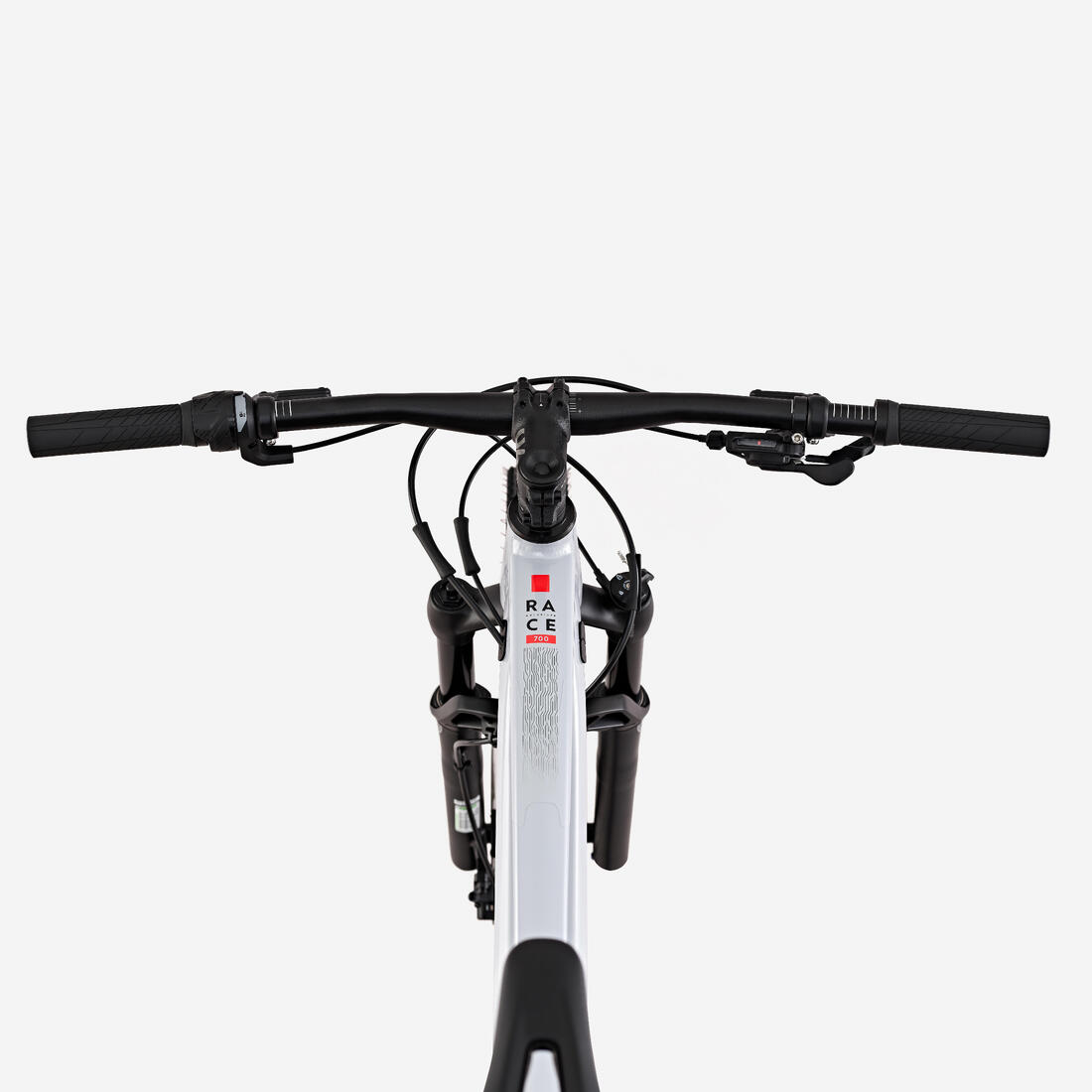

Rockrider aluminium flat handlebar
720 mm wide
6.5° angle
256 g
Grips: Rockrider 900 Lock On
Saddle & seatpost
Rockrider Control Short Nose saddle
Steel rails
Weight: 270 g
31.6 mm aluminium seat post
Length: 350 mm (size S) and 400 mm (size M, L and XL)
285 g
Tyre
Vittoria
Front: Vittoria Saguaro
29 x 2.25 TLR
Flexible Tubeless Ready
Rear: Vittoria Saguaro
29 x 2.25 TLR
Flexible Tubeless Ready
Pedals
Rockrider 520 Grip resin flat pedals
Accessories
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals
Warranty
Lifetime for the frame, seat post, stem and handlebar
2 years for wearing parts
Your first performance XC bike at an affordable price. Aluminium frame and 11-speed drivetrain.
Efficiency
Variable thickness aluminium frame, performance geometry
Lightweight
Lightweight MTB with an alu frame weighing less than 1.5 kg and tubeless wheels.
Precision
Thanks to the new Shimano Deore 11-speed drivetrain.
Cushioning
Easily overcome obstacles with the Manitou Markhor 100 mm fork.
Control
2.25 tubeless tyres, hydraulic disc brakes
Compatibility
Tubeless ready wheels and tyres
This mountain bike is designed for starting cross country (XC) mountain biking.
