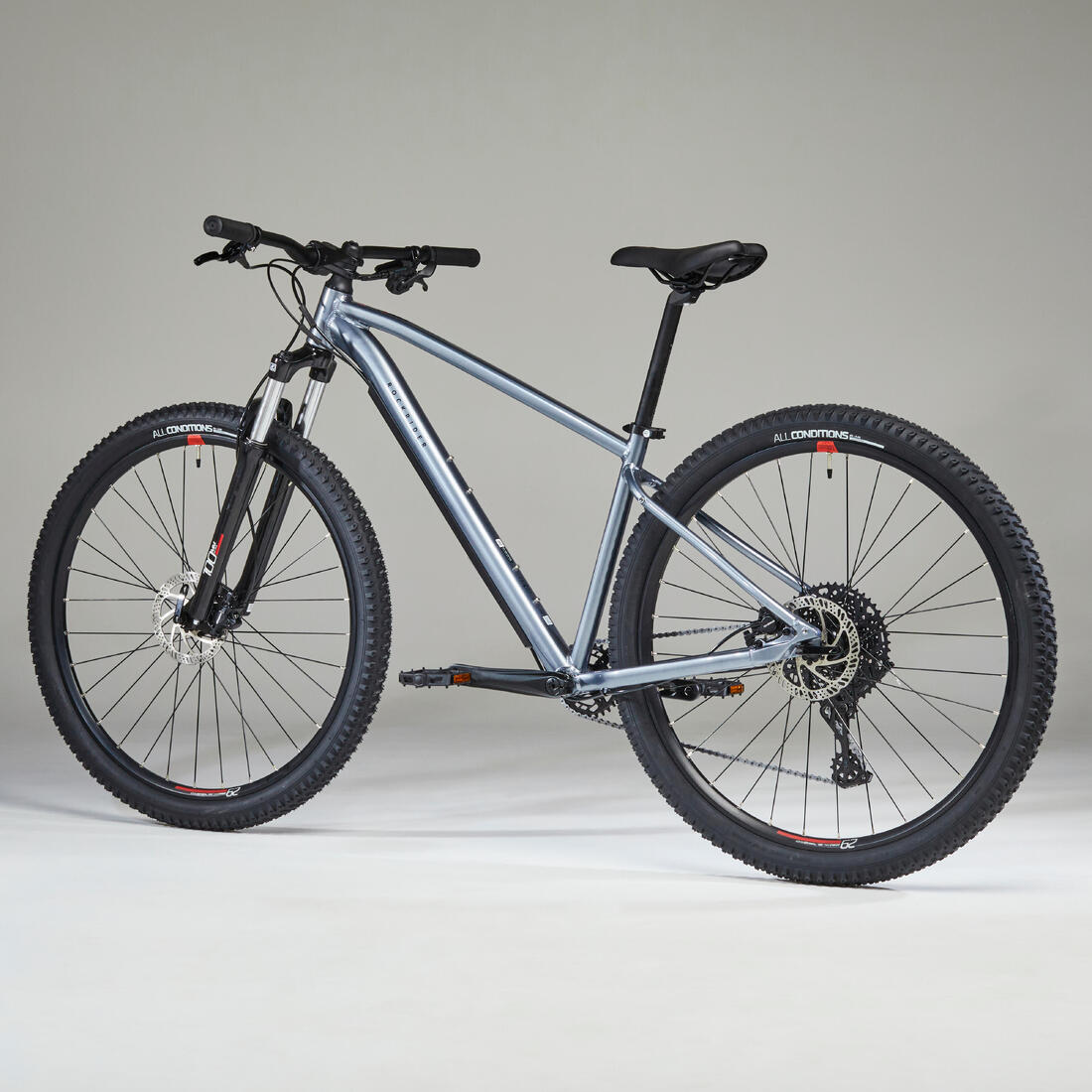

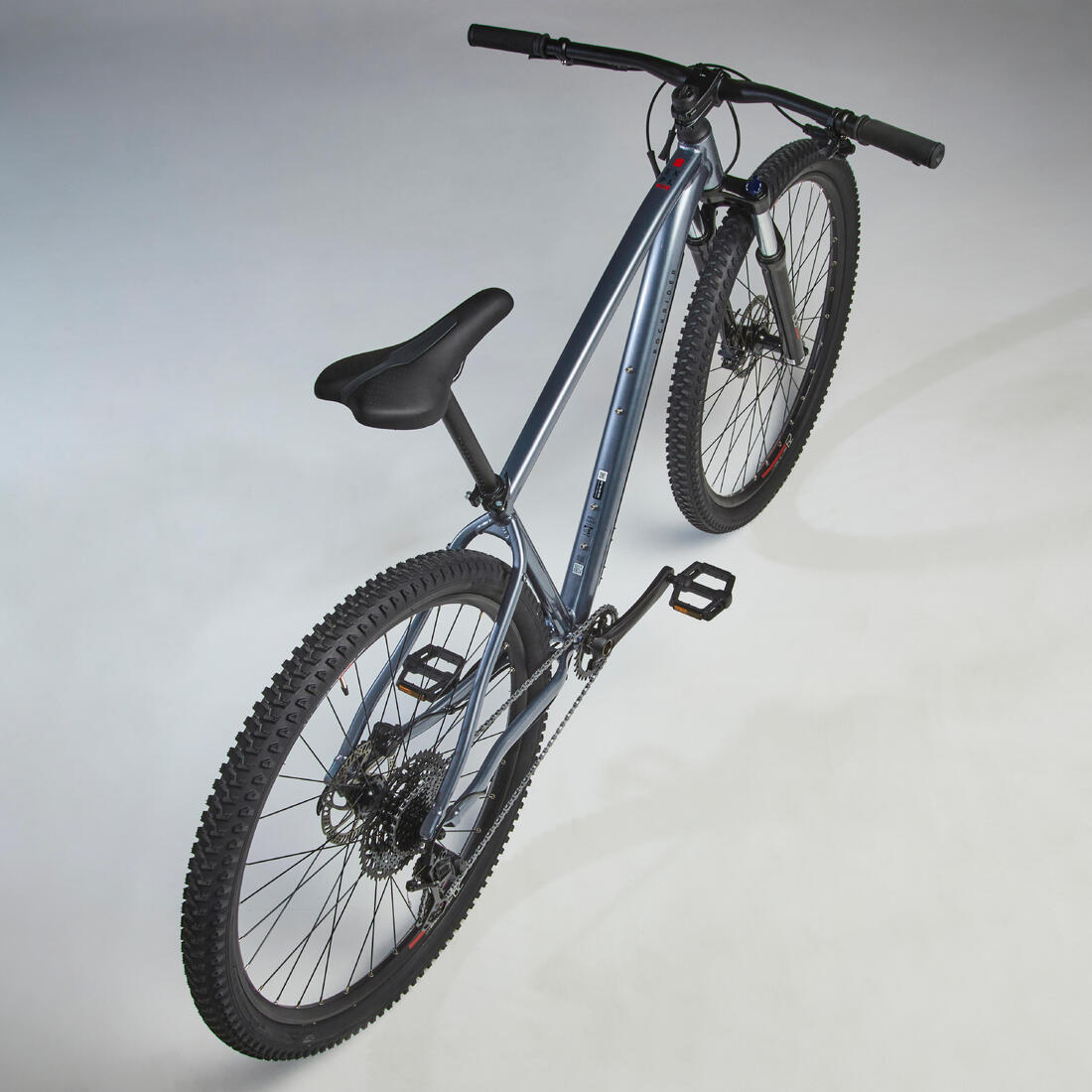

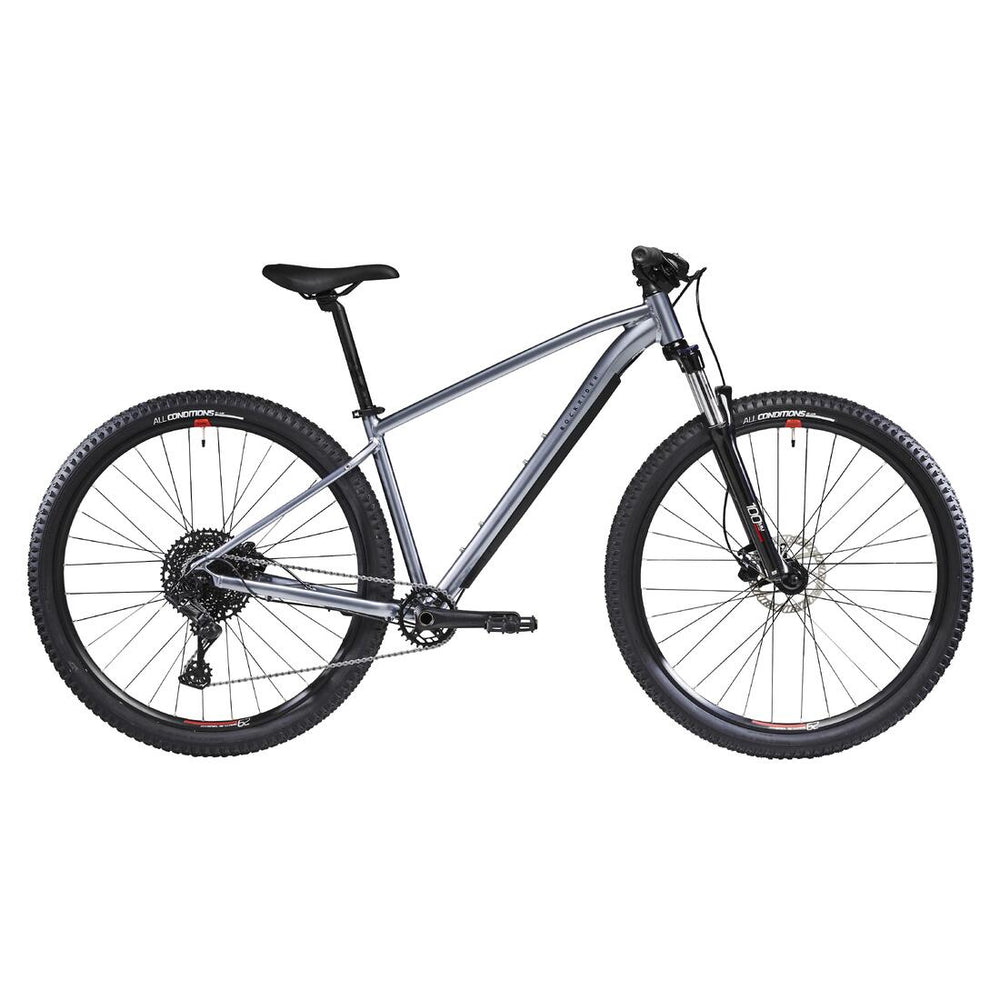

29" Touring Mountain Bike Explore 520 - Grey / Red

ROCKRIDER

29" Touring Mountain Bike Explore 520 - Grey / Red

290.000 BD

MEN SIZE GUIDE

How to measure:

Head size: Wrap a tape measure horizontally around your head just below your eyebrows.
Chest size: Wrap a tape measure horizontally around the widest part of your chest.
Waist size: Wrap a tape measure horizontally around the widest part of your waist.
Hand size: Wrap a tape measure horizontally around your hand, starting from your thumb.
Shoe size: Place your heels flush against a wall. Place a heavy object (such as a book) against your toes. Measure the distance between the wall and the object.

TOPS (T-SHIRT, PULLOVER, JACKET)

Size	XS	S	M	L	XL	2XL	3XL	4XL
Chest (cm)	84-87	88-91	92-95	96-103	104-113	114-123	124-135	136-146

BOTTOMS (SHORTS, PANTS, BOARDSHORTS)

Size	XS	S	M	L	XL	2XL	3XL
Hips (cm)	84-86	87-91	92-97	98-104	105-111	112-118	119-126

SWIMWEAR

Size	S	M	M-L	L	L-XL	XL	XL-2XL	2XL
Hips (cm)	84-87	88-91	92-95	96-103	104-113	114-123	124-135	136-146

WOMEN SIZE GUIDE

How to measure:

Head size: Wrap a tape measure horizontally around your head just above your eyebrows.
Chest size: Wrap a tape measure horizontally around the widest part of your chest.
Band size: Wrap a tape measure horizontally around your torso just below your breasts.
Waist size: Wrap a tape measure horizontally around the widest part of your waist.
Hip size: Wrap a tape measure horizontally around the largest part of your hips.
Hand size: Wrap a tape measure horizontally around your hand, starting from your thumb.
Shoe size: Place your heels flush against a wall. Place a heavy object (such as a book) against your toes. Measure the distance between the wall and the object.

TOPS (T-SHIRT, PULLOVER, JACKET)

Size	3XS	2XS	XS	S	M	M-L	L	L-XL	XL	XL-2XL	2XL
Chest (cm)	76-79	80-83	84-87	88-91	92-95	96-99	100-103	104-107	108-113	114-118	119-123

BOTTOMS (SHORTS, PANTS)

Size	3XS	2XS	XS	S	M	L	XL	2XL	3XL
Hips (cm)	81-85	86-90	91-96	97-102	103-108	109-114	115-120	121-128	129-136

BRA

Size	70A	70B	70C	70D	75A	75B	75C	75D	75E	80A	80B	80C	80D	80E	85B	85C	85D	85E
Chest size (cm)	80-86	80-86	80-86	80-86	86-92	86-92	86-92	86-92	86-92	92-100	92-100	92-100	92-100	92-100	100-106	100-106	100-106	100-106

SWIMWEAR

Size	XS	S	M	M-L	L	L-XL	XL	XL-2XL	2XL
Hips (cm)	90-93	94-97	98-101	102-105	106-109	110-113	114-119	120-125	126-131

KIDS SIZE GUIDE

How to measure:

Clothing size: Stand upright and place your bare heels flush against a wall. Measure the distance between the bottom of your foot and the top of your head.
Head size: Wrap a tape measure horizontally around your head just above your eyebrows.
Hand size: Wrap a tape measure horizontally around your hand, starting from your thumb.
Shoe size: Place your heels flush against a wall. Place a heavy object (such as a book) against your toes. Measure the distance between the wall and the object.

APPAREL

Age	3 Months	6-9 Months	9-12 Months	18 Months	2 Years	3 Years	4 Years	5 Years	6 Years	8 Years	10 Years	12 Years	14 Years
Height (cm)	56-63	64-70	71-76	77-82	83-89	90-97	98-104	105-114	115-124	125-132	133-142	143-152	153-162

SHOES SIZE GUIDE

MEN SHOES

US Size	6.5	7	7.5	7.5	8	8.5	9	9.5	9.5	10	10.5	11	11.5	11.5	12	12.5	13
EU Size	39	39.5	40	40.5	41	41.5	42	42.5	43	43.5	44	44.5	45	45.5	46	46.5	47
Foot Length (in)	9 ^1/2	9 ^3/4	10	10	10 ^1/4	10 ^1/2	10 ^1/2	10 ^1/2	10 ^3/4	10 ^3/4	11	11 ^1/4	11 ^1/4	11 ^1/2	11 ^1/2	11 ^1/2	11 ^3/4

WOMEN SHOES

US Size	4	4.5	5	5.5	5.5	6	6.5	7	7.5	7.5	8	8.5	9	9	9.5	10	10.5
EU Size	34	34.5	35	35.5	36	36.5	37	37.5	38	38.5	39	39.5	40	40.5	41	41.5	42
Foot Length (in)	8 ^1/2	8 ^1/2	8 ^1/2	8 ^3/4	8 ^3/4	9	9 ^1/4	9 ^1/4	9 ^1/2	9 ^1/2	9 ^1/2	9 ^3/4	10	10	10 ^1/4	10 ^1/2	10 ^1/2

KIDS SHOES

US Size	4.5C	5C	5.5C	6C	7C	7.5C	8.5C	9C	10C	11.5C	12.5C	13C	1	2	2.5	3.5	4	5
EU Size	20	21	22	23	24	25	26	27	28	29	30	31	32	33	34	35	36	37
Foot Length (in)	4 ^3/4	5	5 ^1/4	5 ^1/2	5 ^3/4	6	6 ^1/4	6 ^1/2	6 ^3/4	7	7 ^1/4	7 ^1/2	7 ^3/4	8	8 ^1/4	8 ^1/2	8 ^3/4	9 ^1/4

GEAR SIZE GUIDE

KIDS BIKES

Bike size	12"	14"	16"	20"	24"
Kids height (cm)	75-90	90-105	105-120	120-135	135-155
kids height (ft)	2'5'' - 3'	3' - 3'5''	3'5'' - 3'11''	3'11''- 4'5''	4'5'' - 5'1''

ROAD BIKES

Bike size	48 (XS)	51 (S)	54 (M)	57 (L)	60 (XL)
Your height (cm)	135-150	150-165	165-176	176-184	184-195

MOUNTAIN BIKES

Bike size	XS	S	M	L	XL
Your height (cm)	135-150	150-165	165-176	176-184	184-195

SKIS

Ski size	115-130	125-140	130-145	135-150	135-155	145-165	150-170	155-175	160-180	165-185	170-190	175-195	180-200
Your height (cm)	132	137	142	147	152	158	163	168	173	178	183	188	193

SNOWBOARDS

Snowboard size	128-136	133-141	139-147	144-152	149-157	154-162	159-167	160+	160+	160+
Your height (cm)	147	152	158	163	168	173	178	183	188	193
Your weight (lb)	50-55	55-60	60-65	65-70	70-75	75-80	80-85	85-90	90-95	95-100

ACCESSORIES SIZE GUIDE

KIDS GLOVES

Glove size	4 Years	6 Years	8 Years	10 Years	12 Years	14 Years
Hand size (cm)	13.9-14.9	14.9-15.9	15.9-16.9	16.9-17.8	17.8-18.6	18.6-19.5

ADULT GLOVE

Glove size	XS	S	M	L	XL	2XL	3XL
Hand size (cm)	20.3-20.8	20.9-21.4	21.5-22.1	22.2-22.7	22.8-23.4	23.5-24	24.1-24.7

BOXING GLOVES

Glove size	6oz	8oz	10oz	12oz	14oz
Your weight (lb)	77-99	99-143	143-172	172-198	>198

Color : squirrel grey

Size: S - 150-164cm

Ref: 8607110

Variant

Only 1 unit left

Description

Designed for regular bike touring.

In a nutshell

Weight: 14.5 kg in size M (without pedals)Frame material: AluminiumType: HardtailWheel size: 29"" (M / L / XL), 27.5"" (S)Fork travel: 100 mmDrivetrain: 1x10Brakes: HydraulicSeat post: AluminiumFrame, stem and handlebar warranty: lifetime

Weight

S: 14.15 kgM: 14.5 kgL: 14.6 kgXL: 14.7 kgNet weight without pedals

Frame

Composition: 6061 aluminium135 mm x 9 mm rear axleQR spindle73 mm threaded bottom bracket (BSA)Protective cover for housing27.2 mm seat tubeStraight head tube2 bottle cage mounts (1 on size S) / Pannier rack mounts

Drivetrain

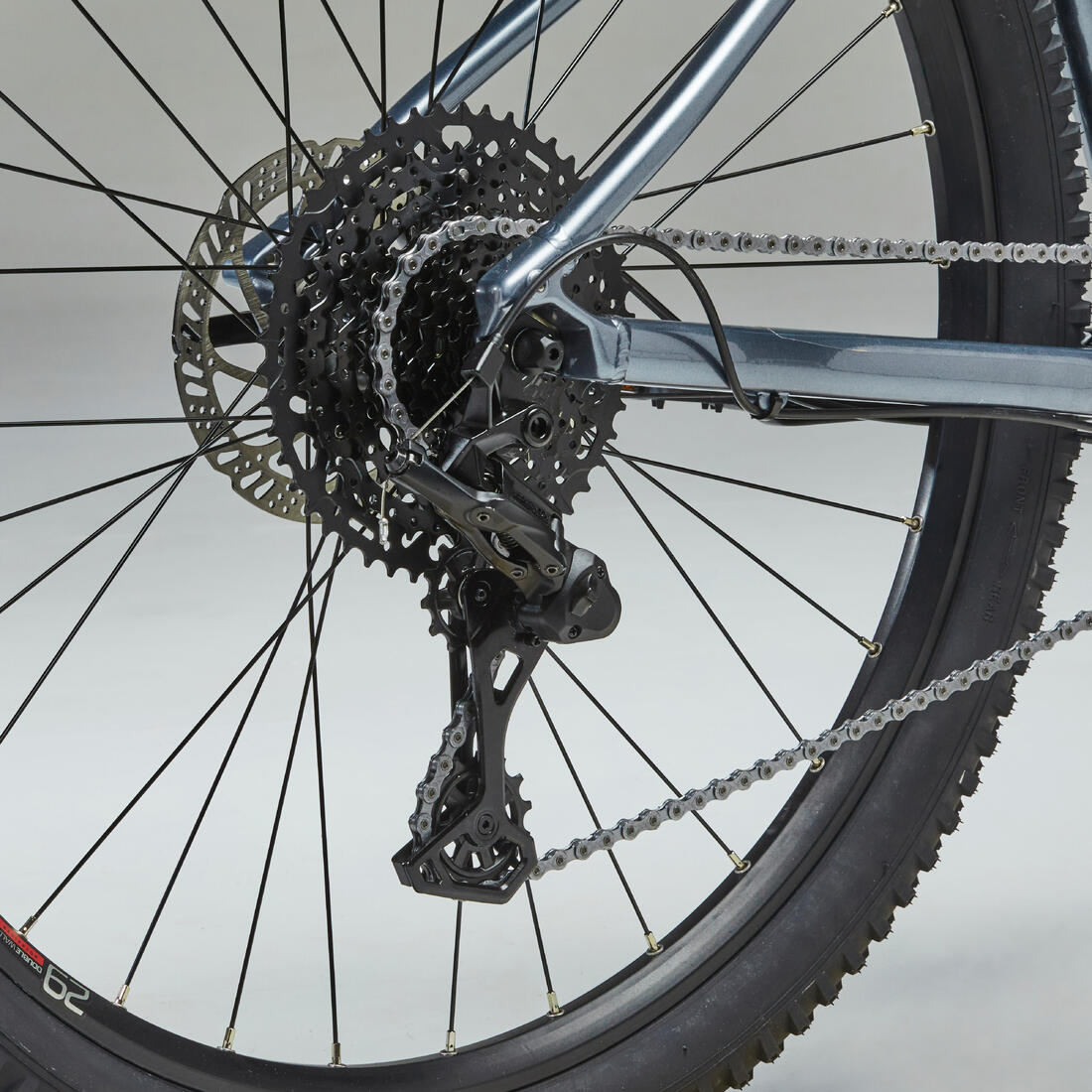

30 T single chainring (compatible with 32 T)170 mm crank""Thru axle / external bearing"" bottom bracketMicroshift AdventX10-speed shifter and rear derailleur11-48 cassetteKMC X10 chain

Suspension

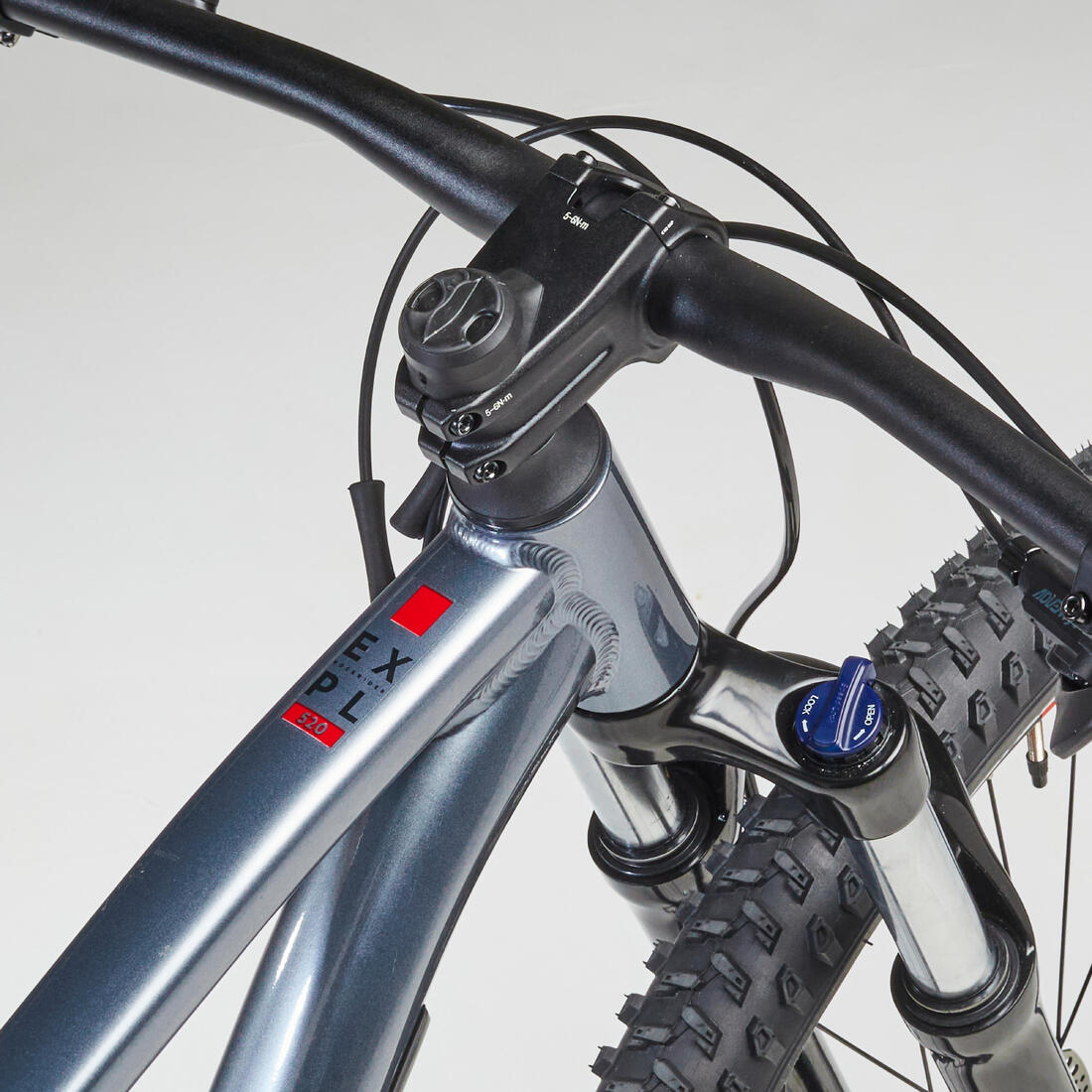

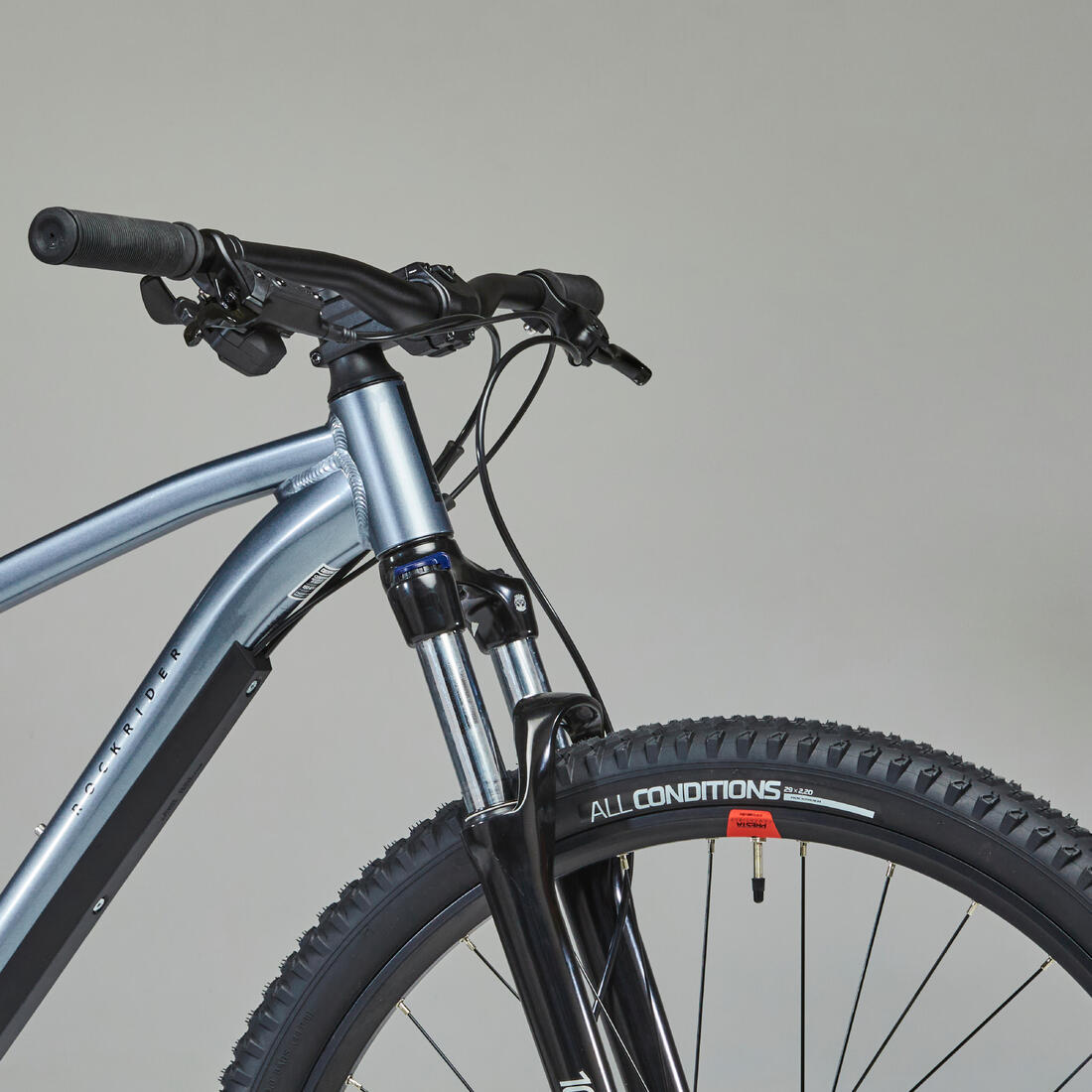

Suntour XCM fork with alu steerer tubeCoil spring with hydraulic cartridge100 mm travel30 mm diameter stanchionQR axle9 x 100 mmTurnkey lockout on the fork

Wheels

29"" (M / L / XL), 27.5"" (S)Tubeless ready rims, Presta valve23 mm inner width (28 mm outer)32 spokes (M / L / XL), 28 spokes (S)6-bolt discShimano/Sram freehub

Brakes

Hydraulic disc brakesTektro TK-M276Number of pistons: 2Front disc: 160 mmRear disc: 160 mmAdjustable reach: Yes

Riding position

Handlebar: Rockrider SportMaterial: AluminiumWidth: 740 mm (M / L / XL), 700 mm (S)Stem: RockriderMaterial: AluminiumSize: 60 mm4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mmCompatible with Garmin, Mio or Bryton bike computer / GPS bracketsGrips: Rockrider SPORT

Saddle and seat post

Rockrider Ergofit EVO saddleRockrider Sport seat postMaterial: AluminiumDiameter: 27.2 mmLength: 350 mm (S / M), 400 mm (L), 450 mm (XL)

Tyre

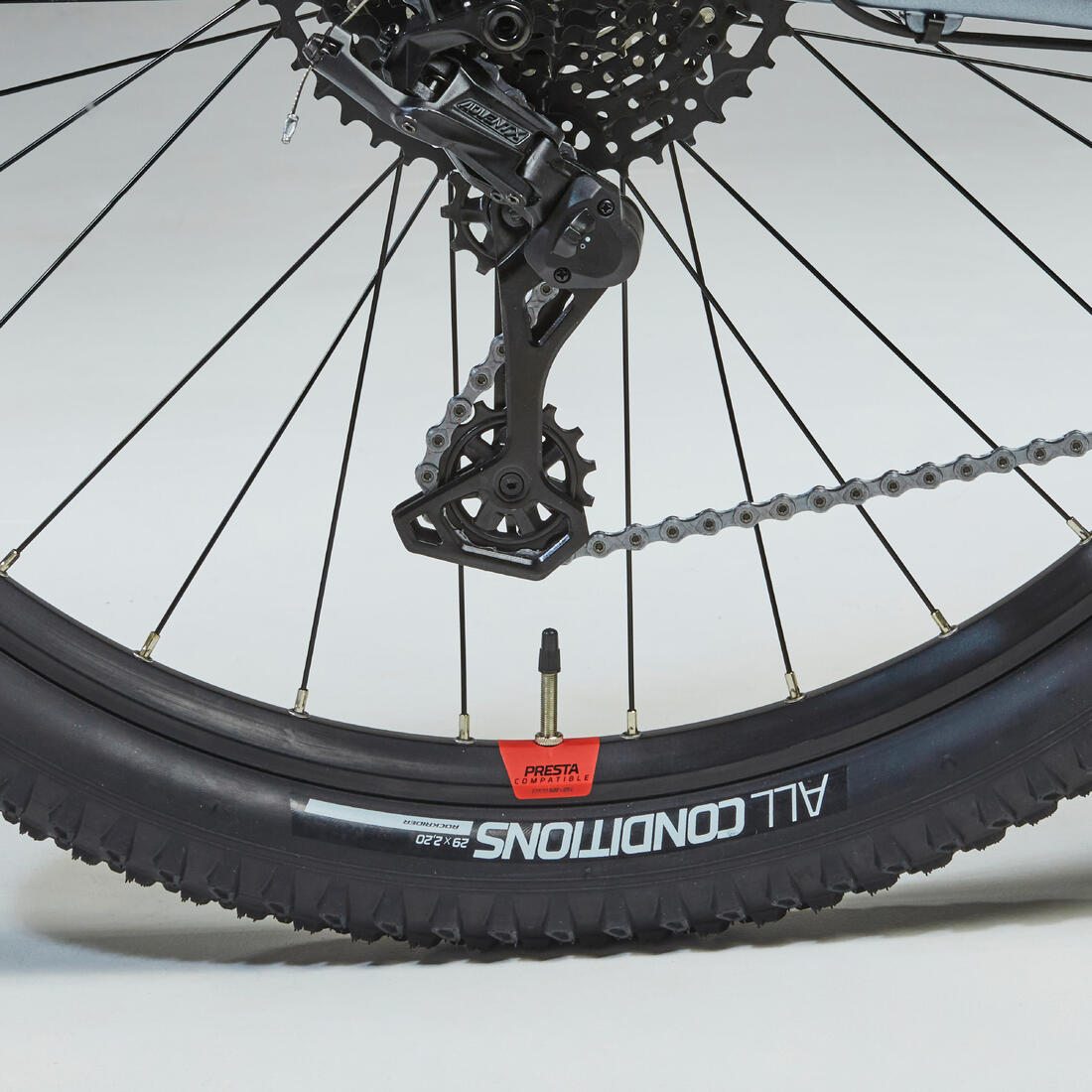

Rockrider All Conditions29""x2.2"" (M / L / XL), 27.5""x2.2"" (S)Carcass: 60 TPI

Pedals

Rockrider 520 Grip resin flat pedals

Accessories included

Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.

The fork equipped with a hydraulic cartridge improves sensitivity to small impacts when mountain biking

Cycling comfort

Raised position, adjustable stem, suspension with 100 mm travel

Directional control

Hydraulic fork and brakes

Efficiency

Lightweight alu frame, 29"" wheels (27.5"" in S), 10-speed single chainring

Ease of use

Change speed with one hand, without even thinking: SINGLE CHAINRING DRIVETRAIN

Lifetime warranty

ROCKRIDER offers a lifetime warranty on the frame, handlebar and stem.

Designed for regular bike touring.

In a nutshell

Weight

S: 14.15 kgM: 14.5 kgL: 14.6 kgXL: 14.7 kgNet weight without pedals

Frame

Drivetrain

30 T single chainring (compatible with 32 T)170 mm crank""Thru axle / external bearing"" bottom bracketMicroshift AdventX10-speed shifter and rear derailleur11-48 cassetteKMC X10 chain

Suspension

Suntour XCM fork with alu steerer tubeCoil spring with hydraulic cartridge100 mm travel30 mm diameter stanchionQR axle9 x 100 mmTurnkey lockout on the fork

Wheels

29"" (M / L / XL), 27.5"" (S)Tubeless ready rims, Presta valve23 mm inner width (28 mm outer)32 spokes (M / L / XL), 28 spokes (S)6-bolt discShimano/Sram freehub

Brakes

Hydraulic disc brakesTektro TK-M276Number of pistons: 2Front disc: 160 mmRear disc: 160 mmAdjustable reach: Yes

Riding position

Saddle and seat post

Rockrider Ergofit EVO saddleRockrider Sport seat postMaterial: AluminiumDiameter: 27.2 mmLength: 350 mm (S / M), 400 mm (L), 450 mm (XL)

Tyre

Rockrider All Conditions29""x2.2"" (M / L / XL), 27.5""x2.2"" (S)Carcass: 60 TPI

Pedals

Rockrider 520 Grip resin flat pedals

Accessories included

Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.

The fork equipped with a hydraulic cartridge improves sensitivity to small impacts when mountain biking

Cycling comfort

Raised position, adjustable stem, suspension with 100 mm travel

Directional control

Hydraulic fork and brakes

Efficiency

Lightweight alu frame, 29"" wheels (27.5"" in S), 10-speed single chainring

Ease of use

Change speed with one hand, without even thinking: SINGLE CHAINRING DRIVETRAIN

Lifetime warranty

ROCKRIDER offers a lifetime warranty on the frame, handlebar and stem.

Designed for regular bike touring.
