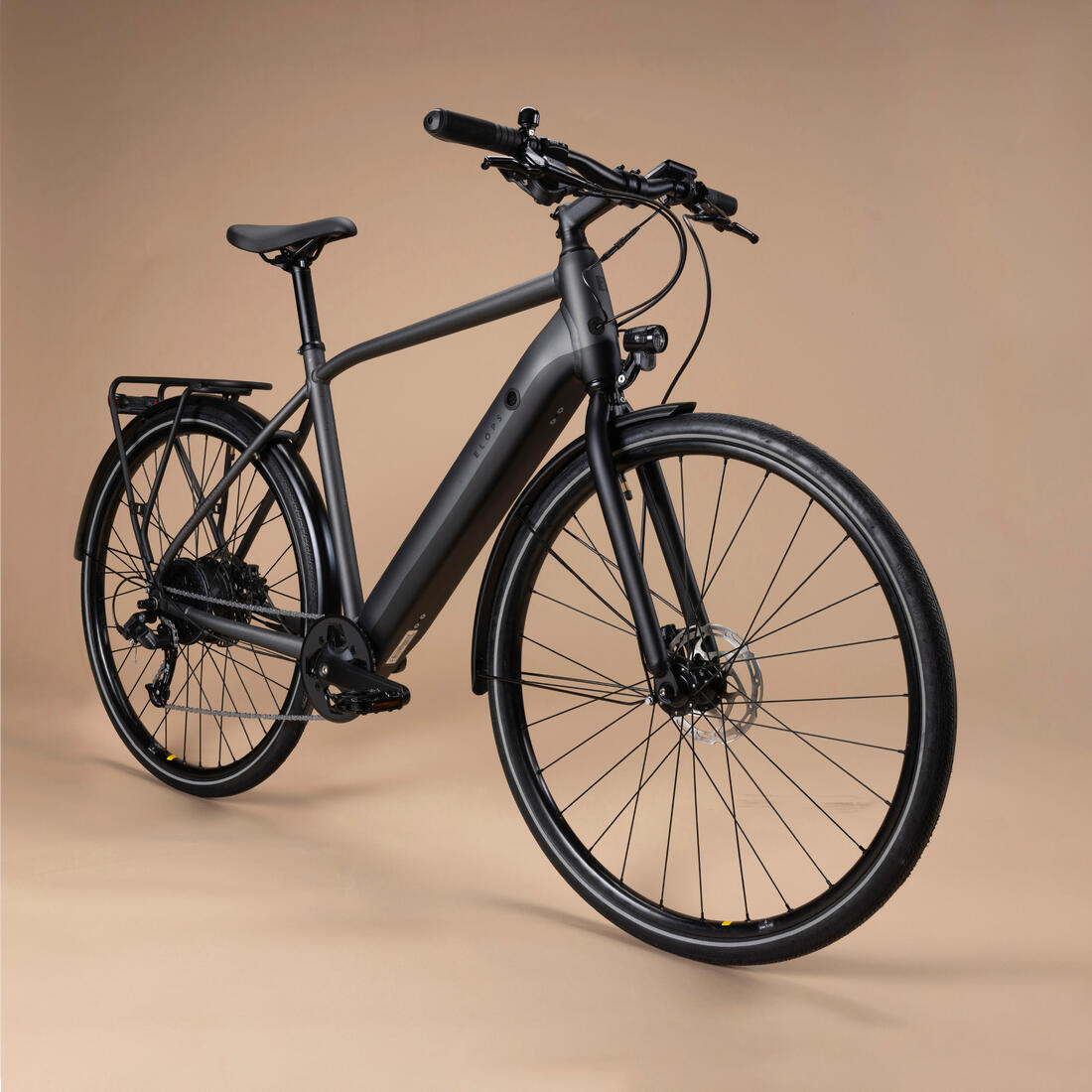

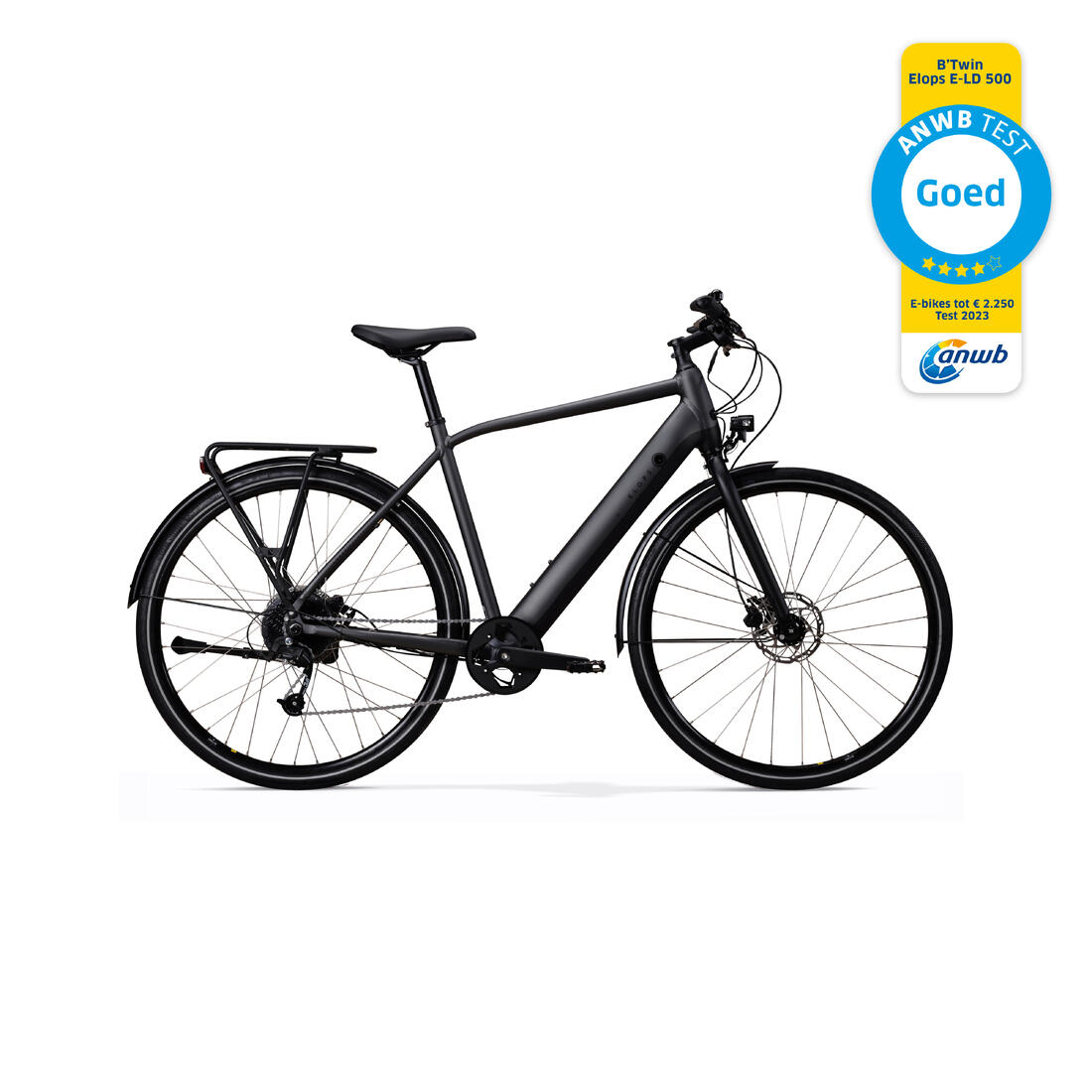

This bike is designed for daily commutes around town and cycling on paved roads. Its speed and power make it ideal for long trips and hilly rides.
WHAT OUR TEAM HAS TO SAY
Fully designed and developed in our design offices in Lille.
Our city bike team designed this bike with one thing in mind: PERFORMANCE. We want your daily commutes to be easy and pleasant whether on flat or hilly roads.

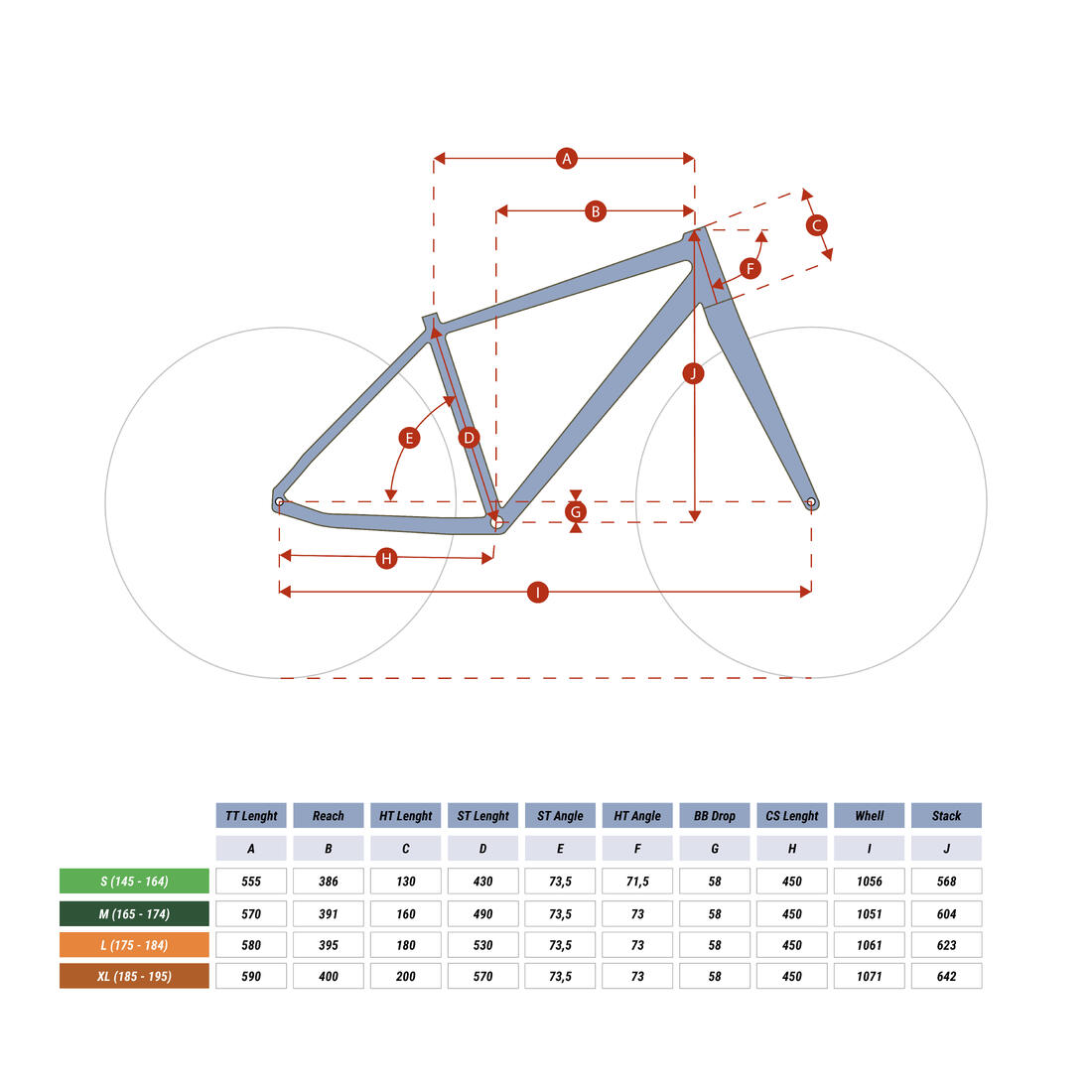

Choosing your size
M: between 1.65 m and 1.74 m
L: between 1.75 m and 1.84 m
XL: between 1.85 m and 1.95 m
If you're between sizes, the smaller size will be easier to handle, while the bigger size will be more stable.
HOW DOES AN ELECTRIC ASSIST BIKE WORK?
With a motor in the rear wheel hub and torque sensor, this bike makes it easy for you to get around without breaking a sweat. The motor kicks in as soon as you start pedalling, and provides assistance proportional to the amount of force you apply to the pedals, so your pedalling feels natural and gradual.
MOTOR / SENSOR.

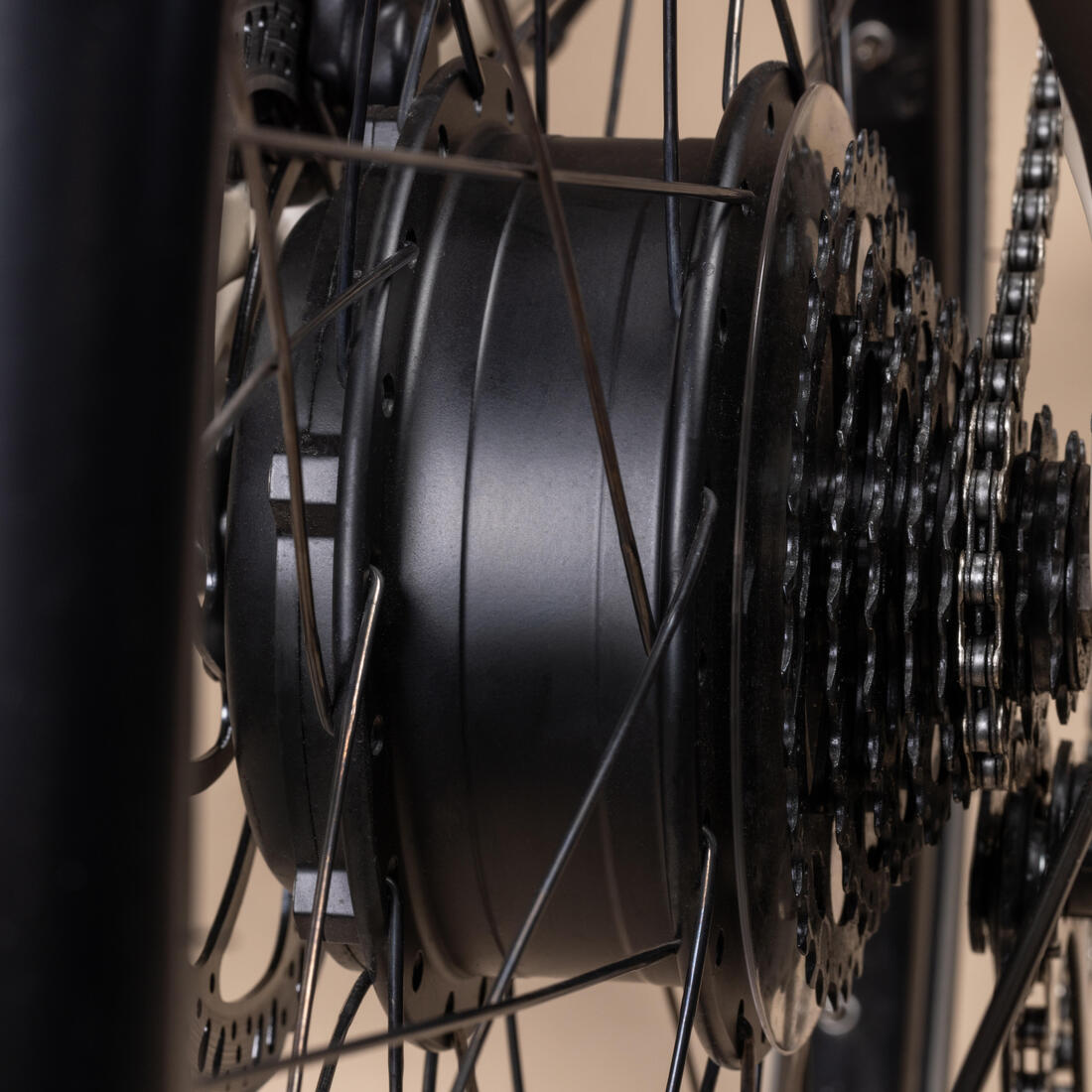

Brushless 250-watt motor in the rear wheel hub.
45Nm torque.Watertight motor: assembly IPX5 tested.
A torque and cadence sensor in the crank provides a fluid and gradual pedalling sensation as well as better energy conservation.

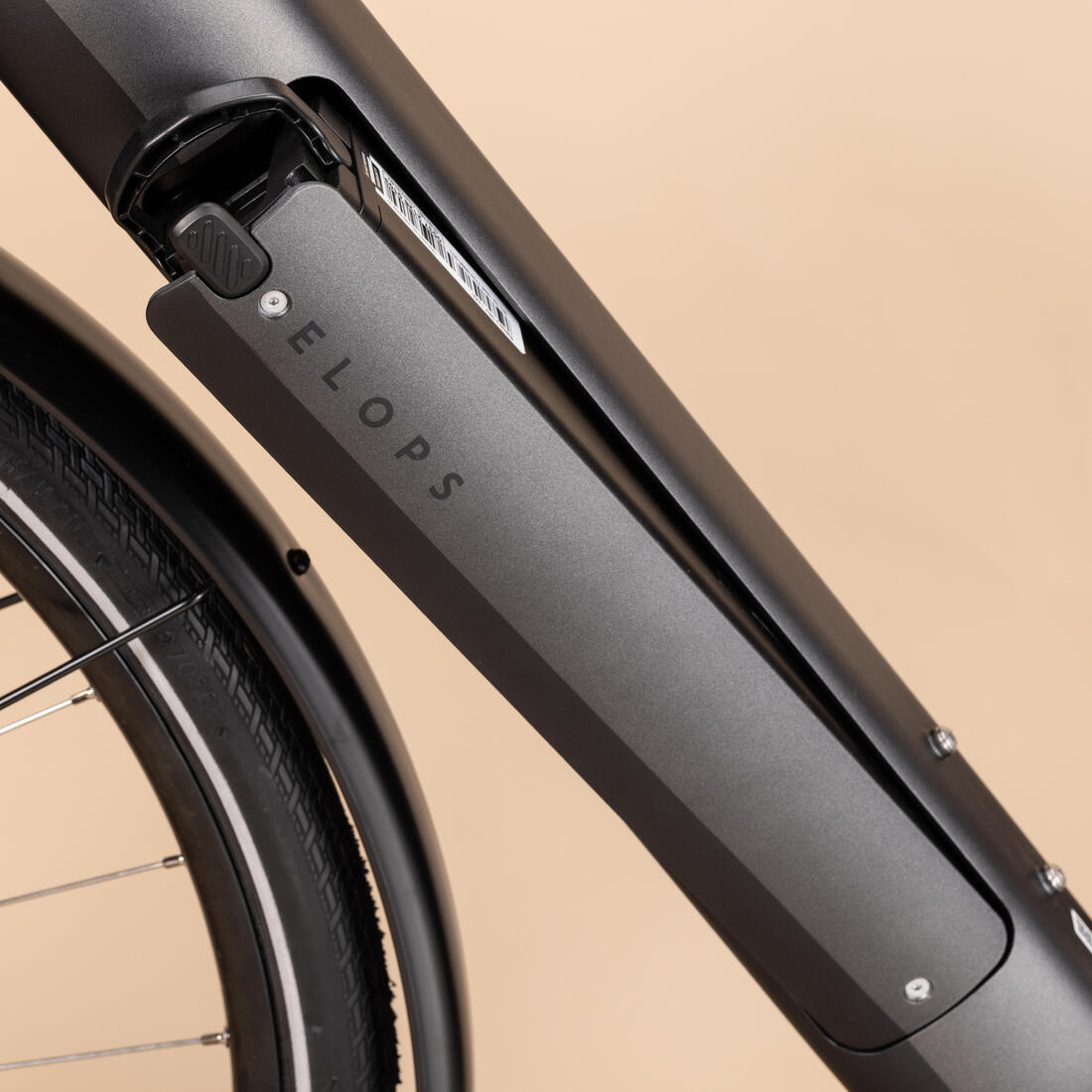

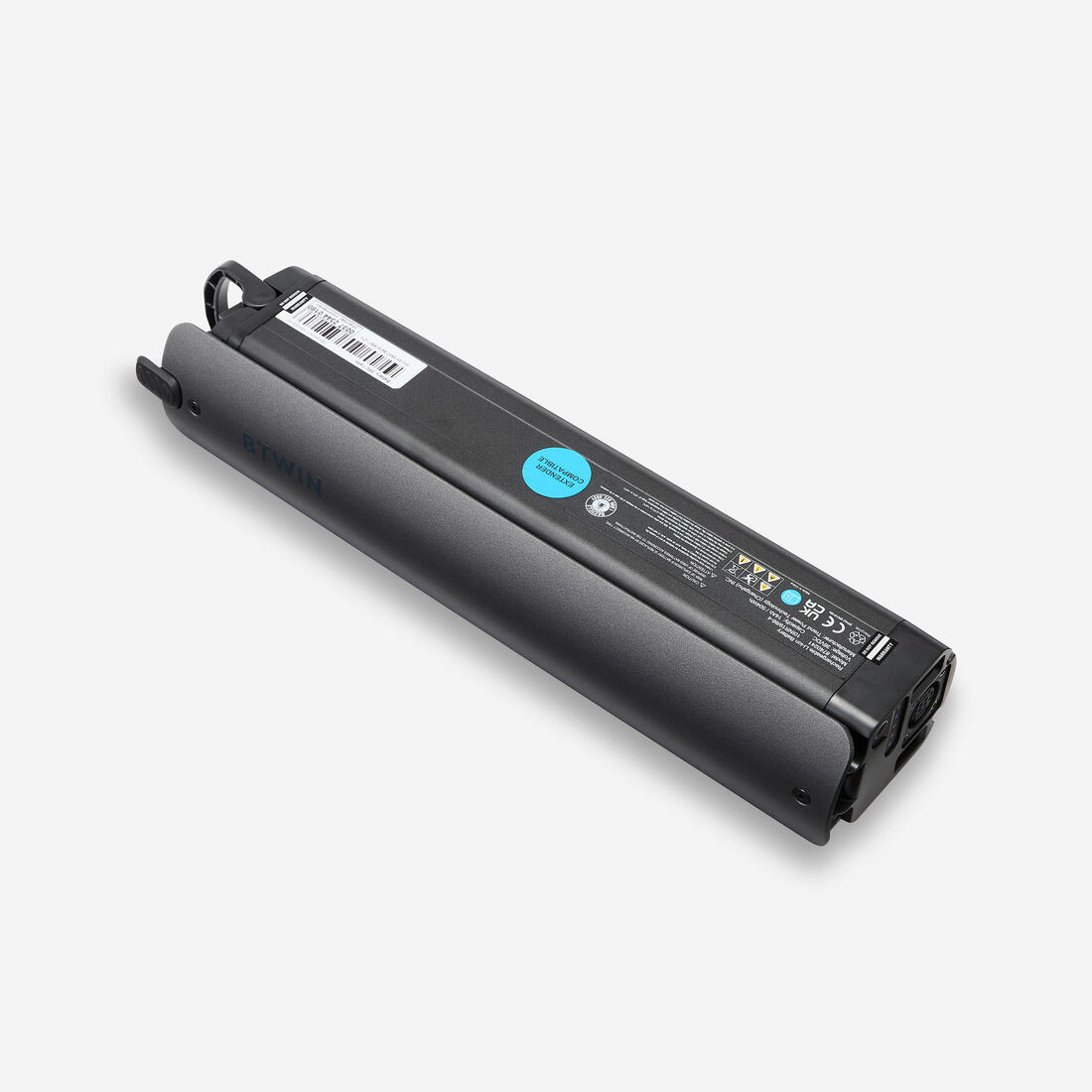

Battery

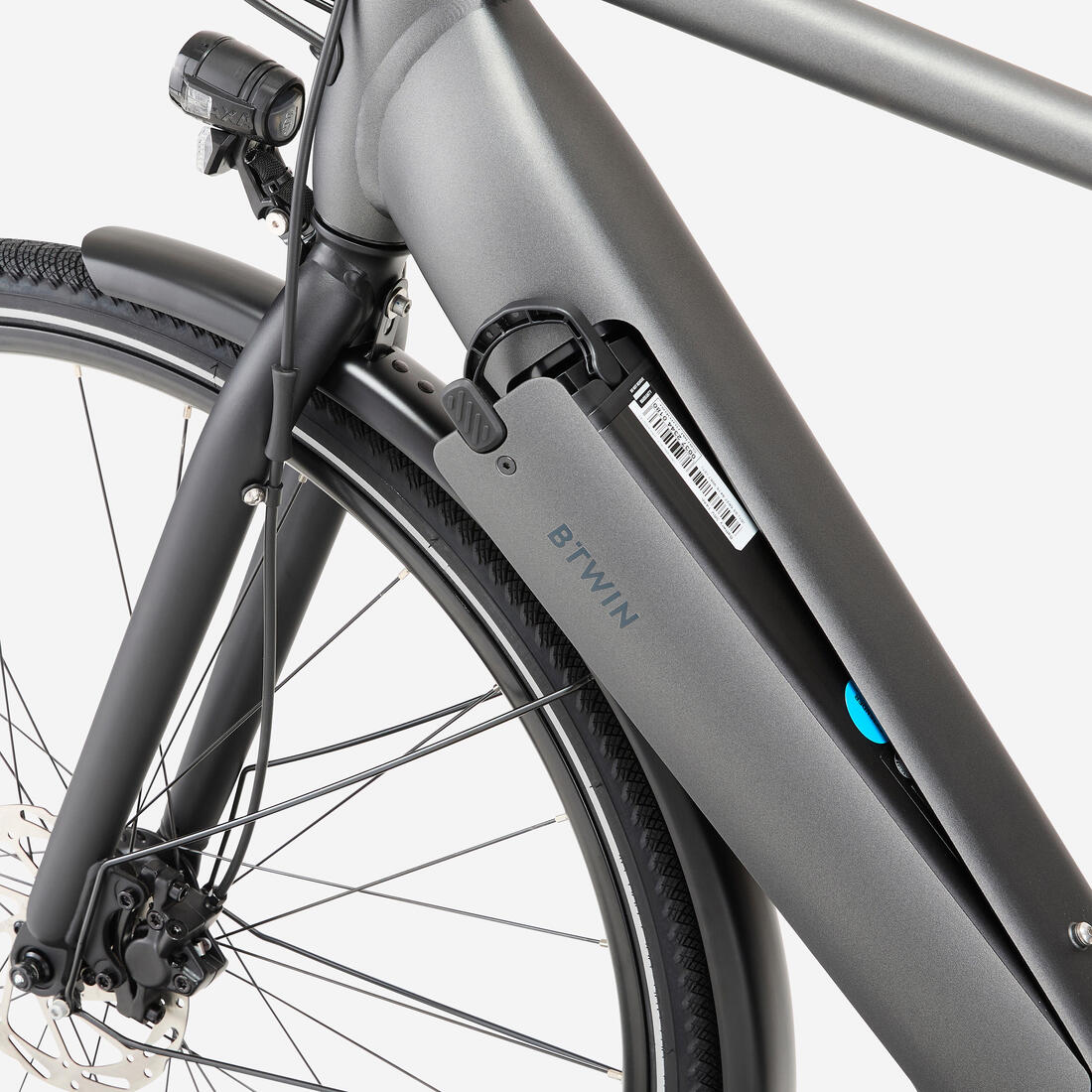

Lithium-ion 36v 14Ah (504Wh) battery in watertight case (IPX5) locked inside the bike frame for better integration and increased protection.
Quick release with key (3 keys included) to recharge it. Built-in carry handle.Weight: 3.1 kgComes with a 2A charging unit that delivers a full charge in 7 hours.

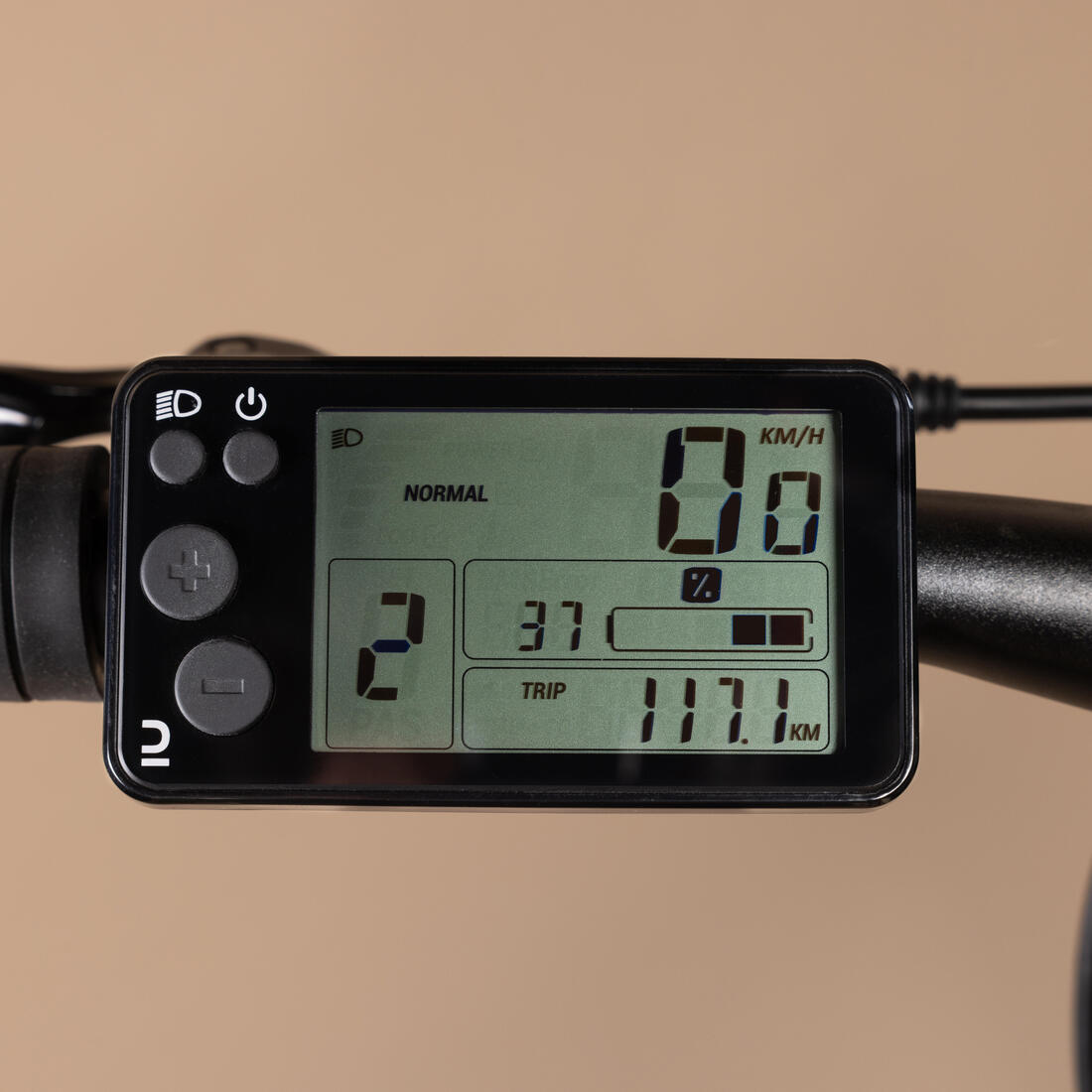

CONSOLE DISPLAY
The battery unit is controlled by an LCD dashboard with 3 modes + a "walk" mode for pushing the bike while walking next to it.
USB port to charge your phone.
ASSIST MODE
Mode 0 - Deactivated
Mode 1 - Economy (+70% assistance). Extend your battery range by conserving battery power. Up to 110 km battery range.
Mode 2 - Standard +120% assistance. Standard mode strikes a good balance of easy pedalling and moderate battery power consumption. Up to 80 km of battery range.
Mode 3 - Boost +250%. Draw maximum power from the motor when climbing a hill. Up to 60 km of battery range.
Mode WALK - assistance as you push your bike.
NOTE ON BATTERY LIFE.
The bike has a maximum range of 110 km in optimal conditions.
It can vary greatly depending on the type of terrain, the weight carried, the wind, the temperature, etc.
If your display shows 90 km at switch-on, no need to panic, it continuously recalculates the battery range according to consumption.
WEIGHT / PERFORMANCE
With a chest angle of around 60°, the riding position is a happy medium that offers performance while remaining comfortable.
The bike's gear ratio as well as the choice of electric assist components save you time and increase your battery range, allowing you to get around anywhere in any weather. Bike weight in size M: 23 kg including battery.
FRAME / FORK
Frame made of 6061 aluminium.
Internal cable routing. Removable/replaceable derailleur hanger.
Frame weight: 3 kg
Steel fork: 1.9 kg.

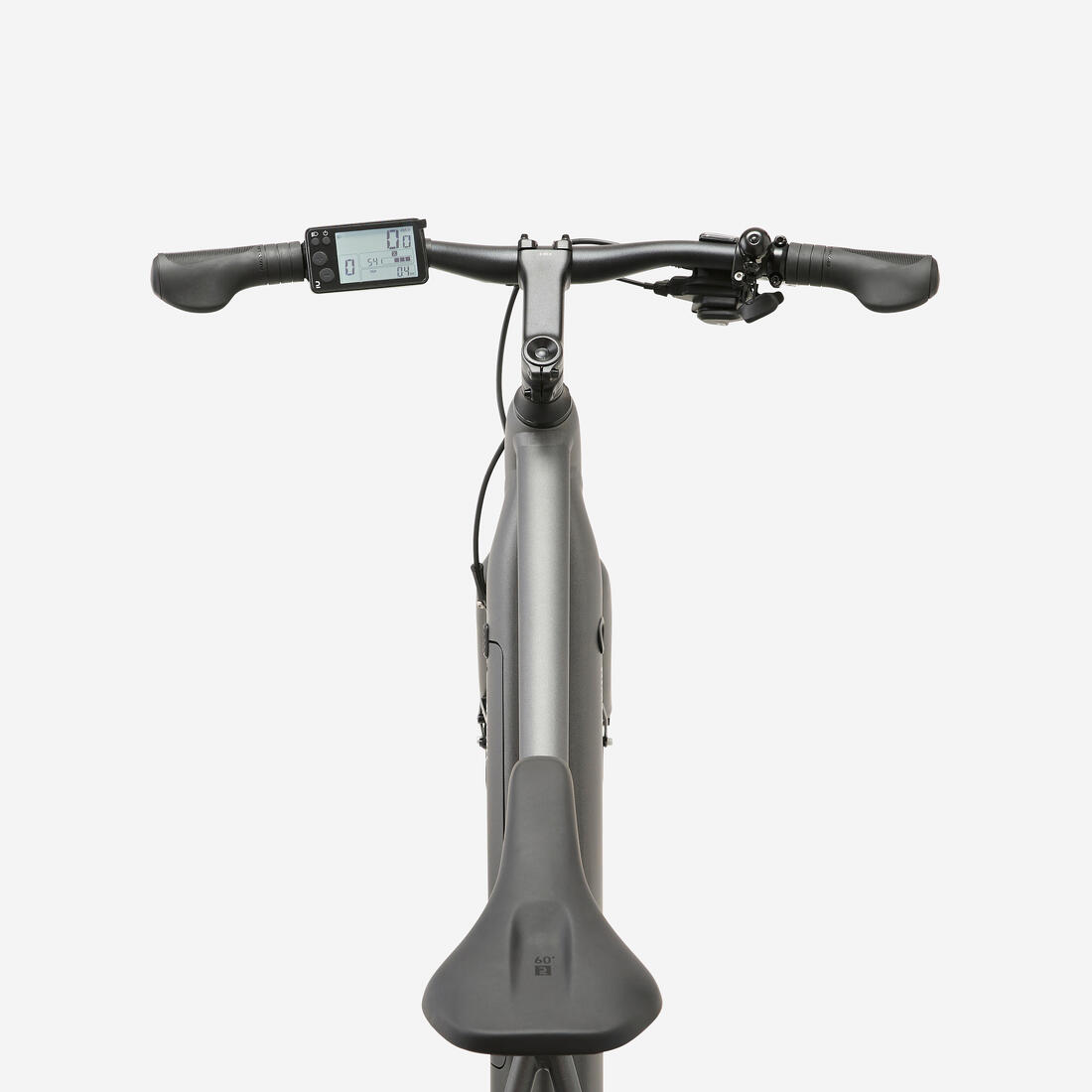

Handlebar / stem / steering.

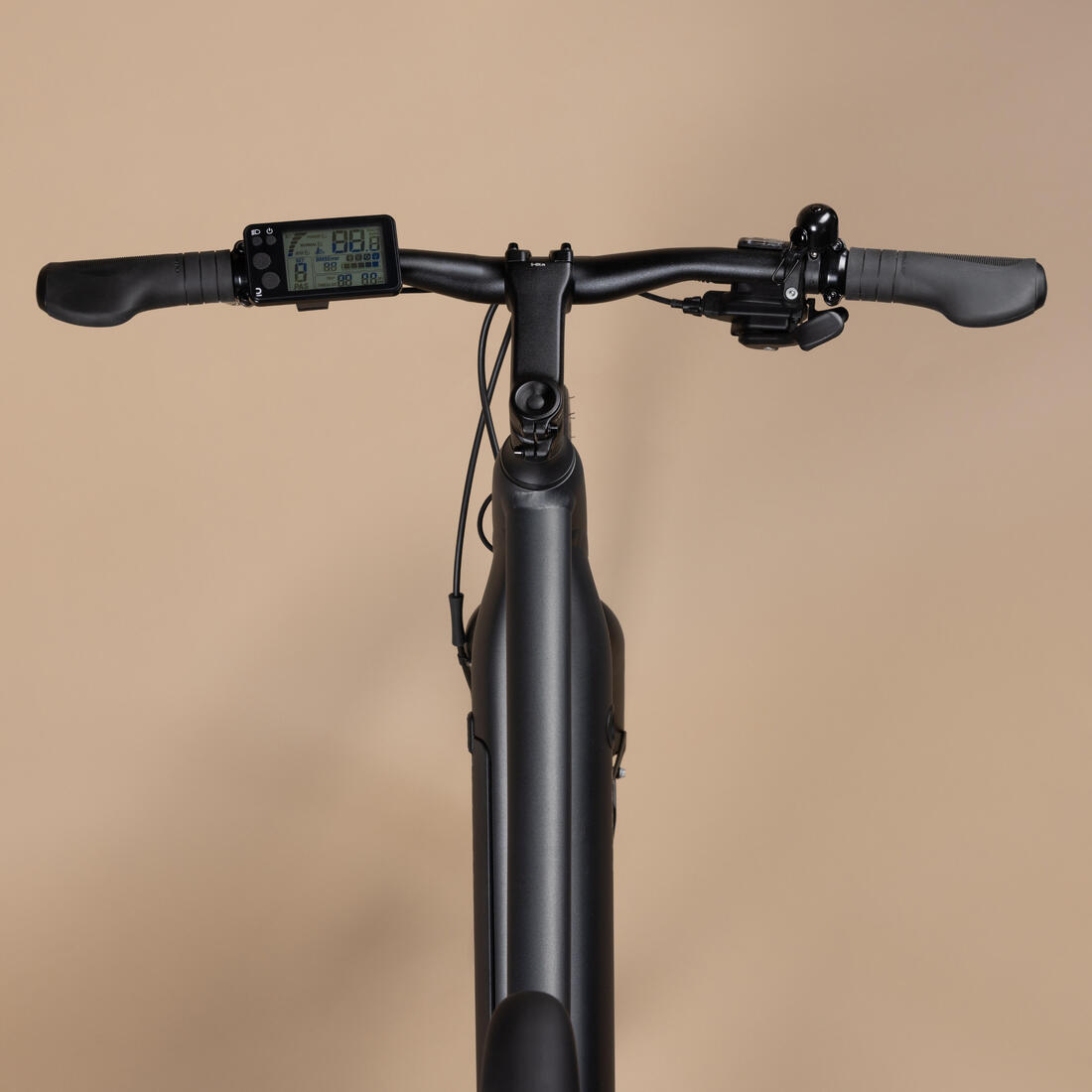

Semi-raised oversize aluminium handlebar (31.8 mm). Handlebar width: 62 cm.
Oversize forged aluminium stem (31.8 mm), 1-1/8" with a +8° angle.
Semi-integrated 1-1/8" steering headset.

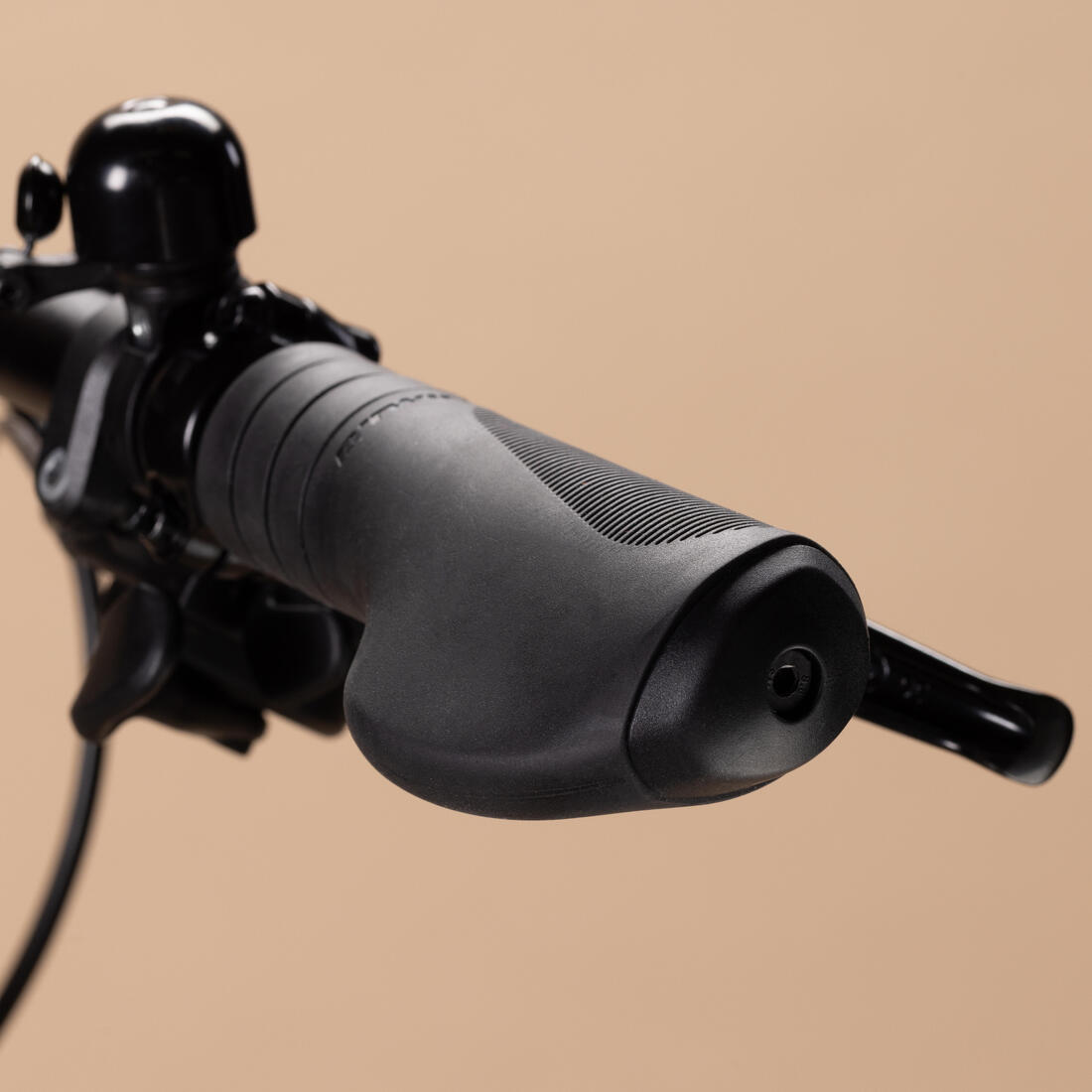

Ergonomic grips feel comfortable and allow a natural grip.

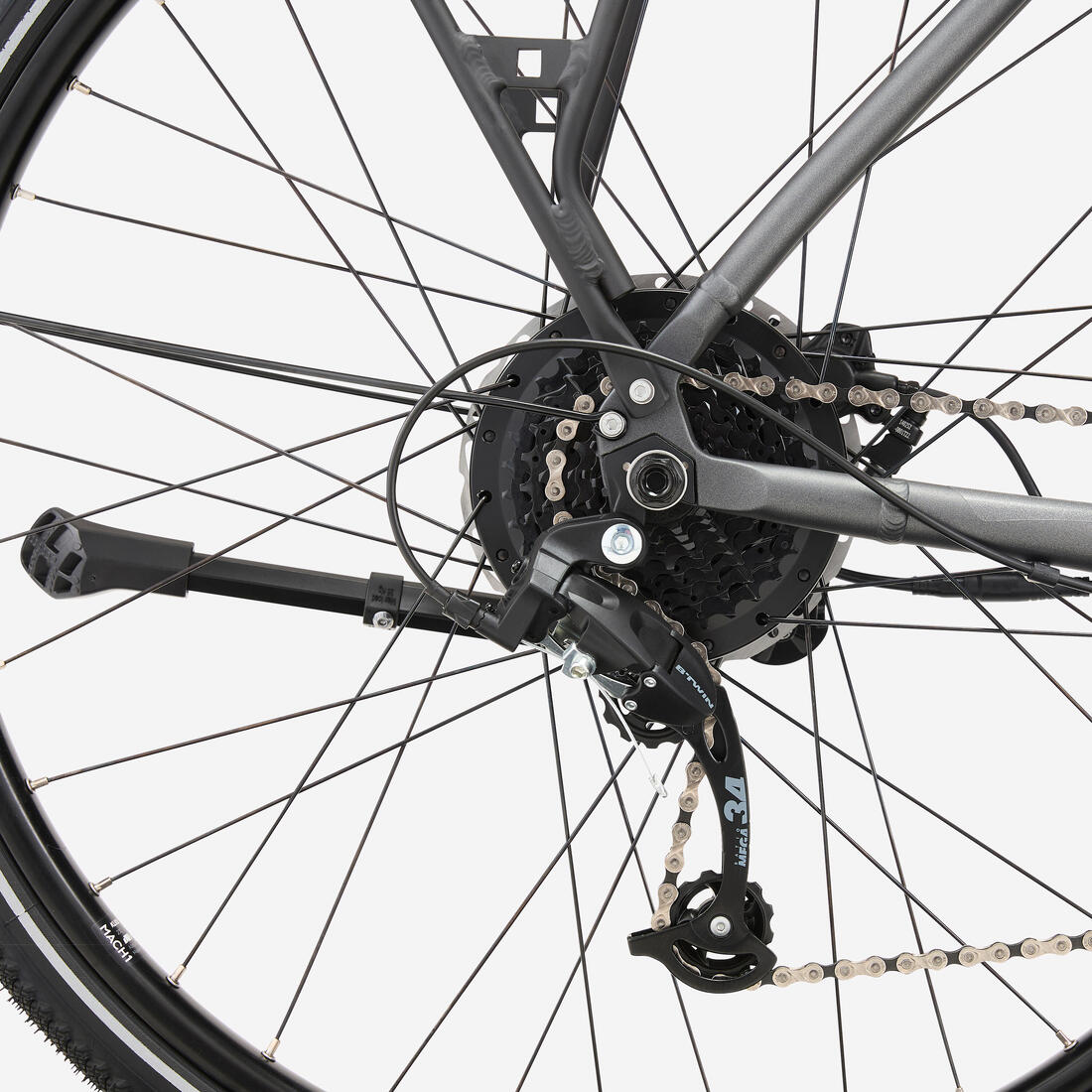

DRIVETRAIN
Our 1 x 8-speed indexed drivetrain reduces the weight and helps you shift with just one hand.

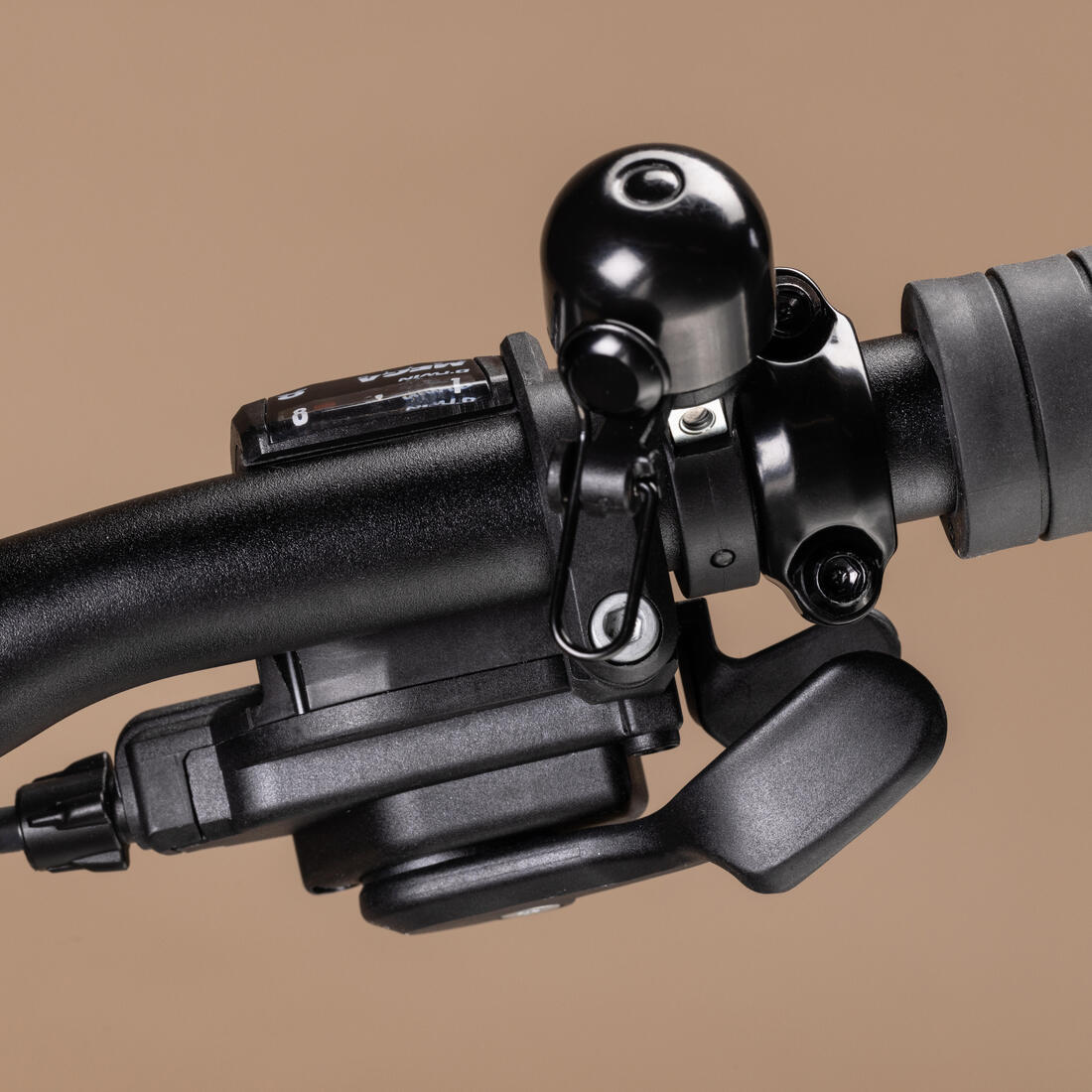

- BTWIN by MICROSHIFT TS39 trigger shifters.
- 8-speed Microshift H081 11/36 cassette.
- Single chainring: 38 teeth
- KMC 8.3 EPT chain with quick release and anti-rust coating

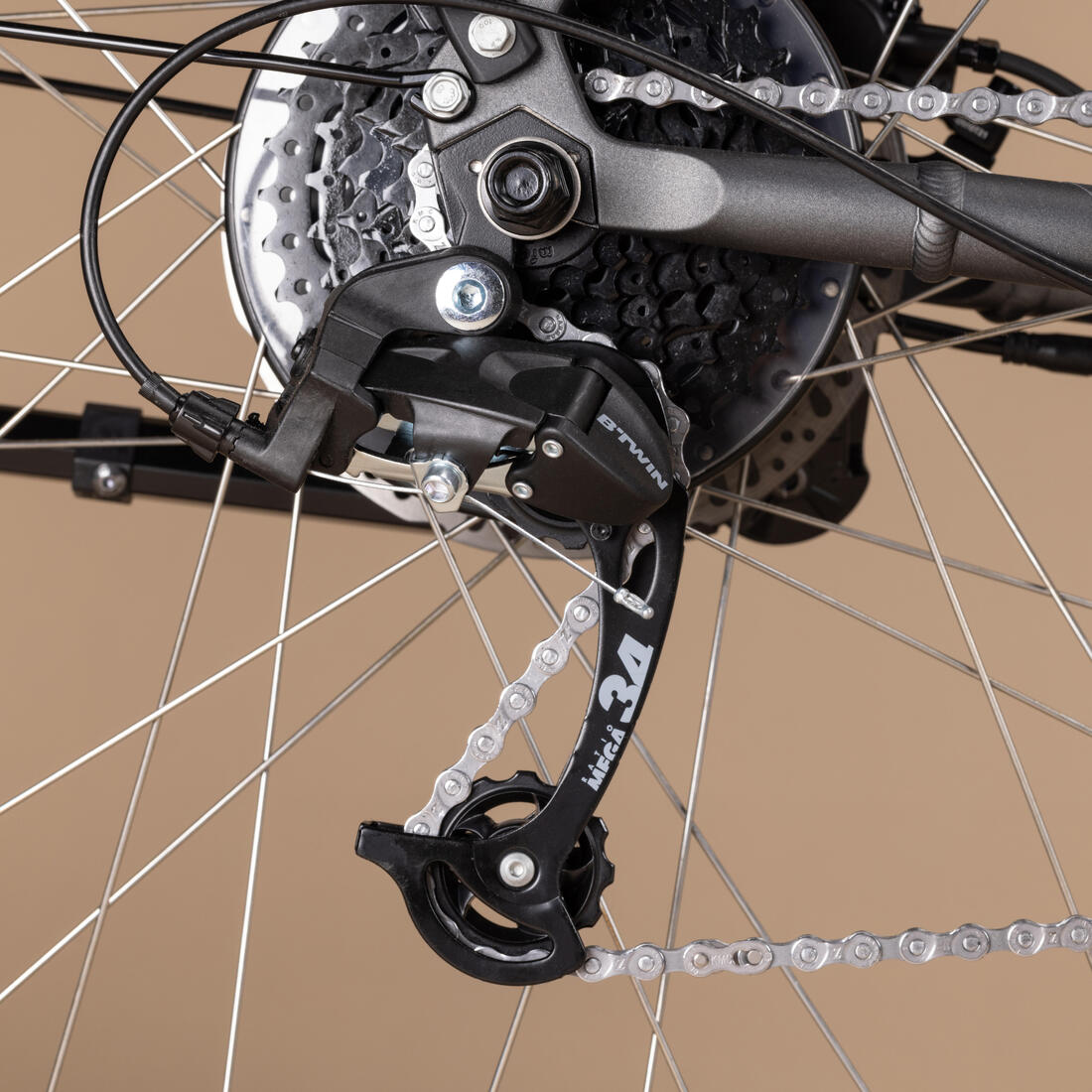

- Rear derailleur: B'Twin by Microshift RD M25.

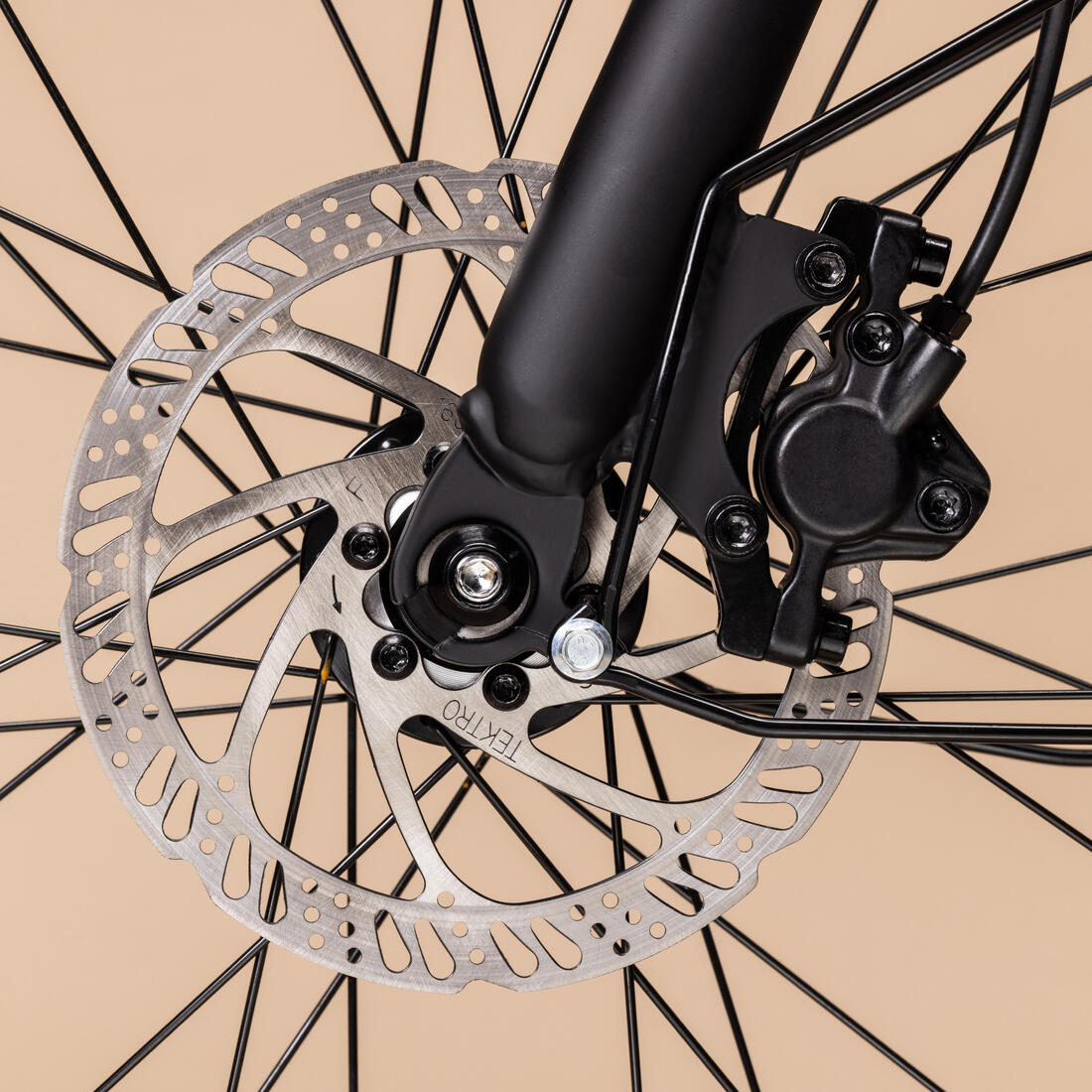

Brakes.
BTwin by TEKTRO TKD32 hydraulic disc brakes.
These brakes are also used for mountain biking, guaranteeing easy, powerful, progressive braking in all weather conditions.
Aluminium shifters.
Disc diameter: 180 mm rear, 160 mm front.

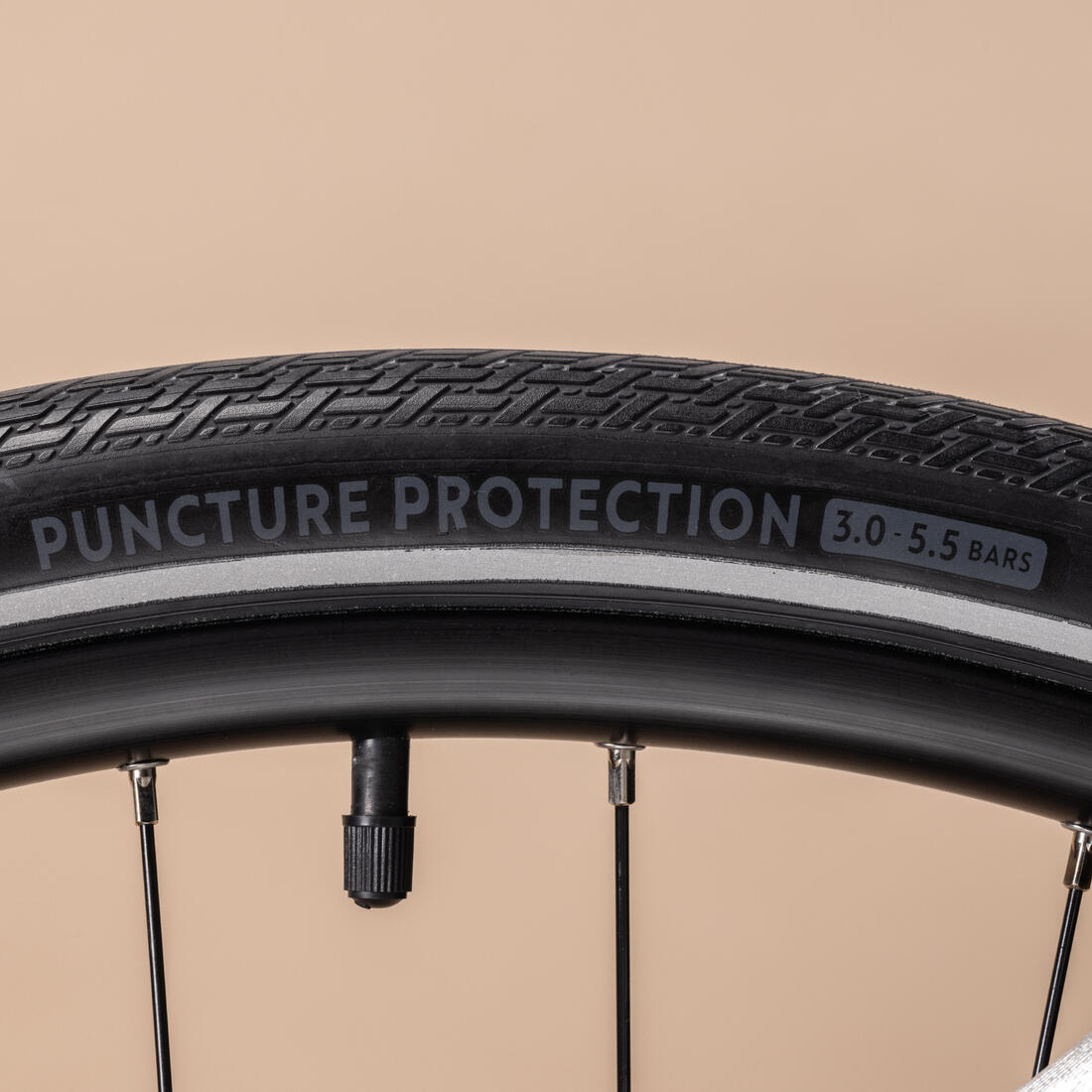

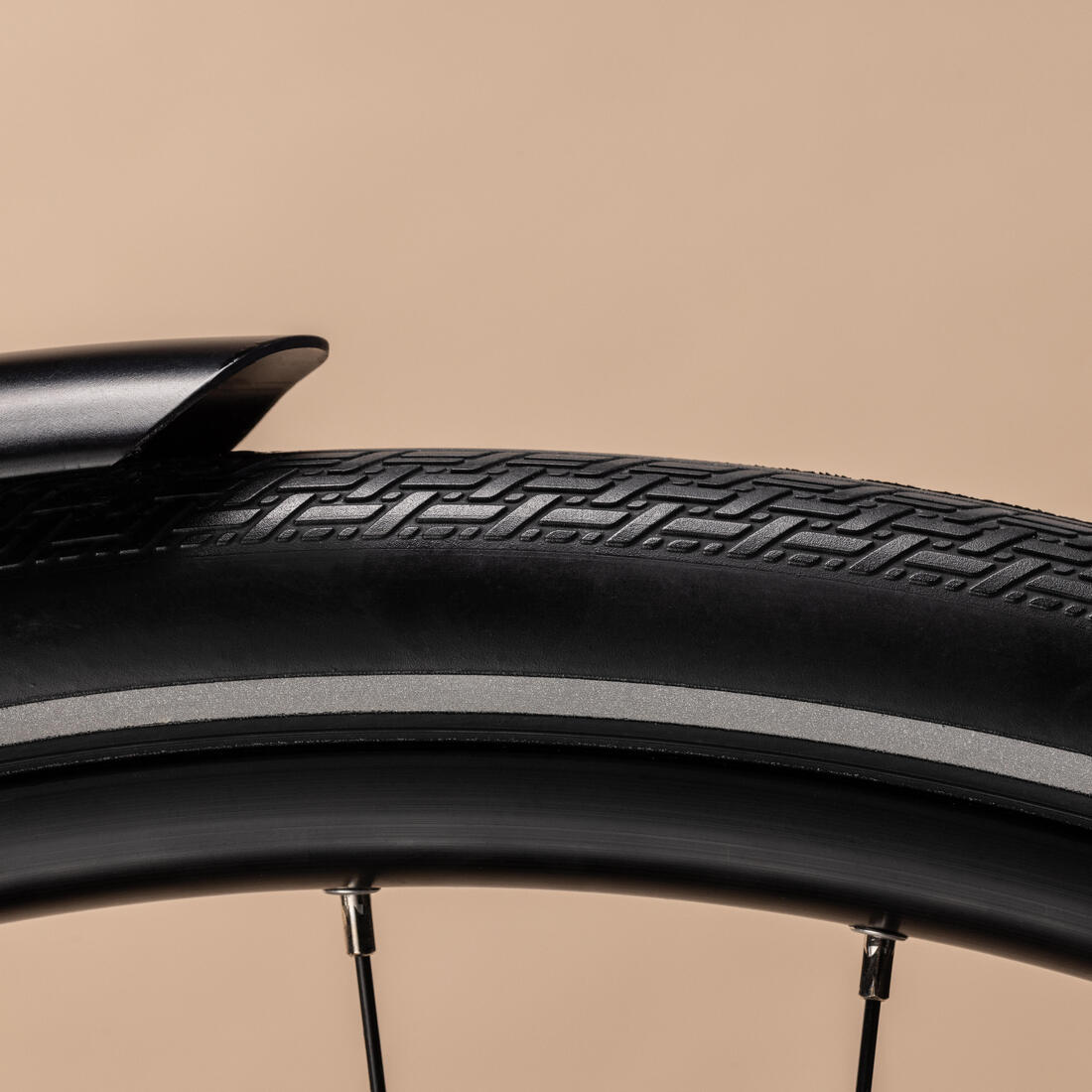

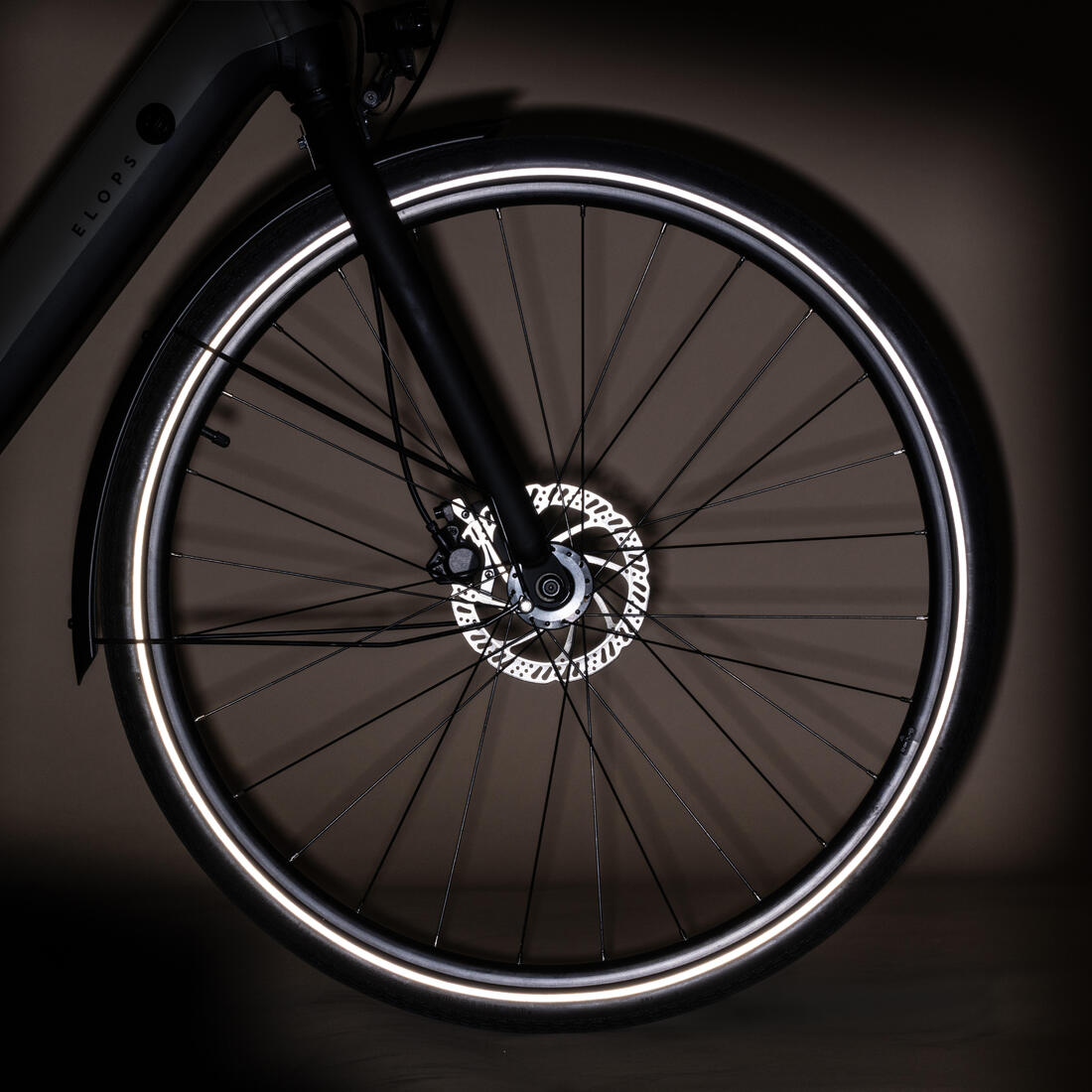

Tyres
The long-distance city tyres have an exclusive tread design that makes them both fast and grippy on dry and wet roads.
A high density puncture-proof "bead to bead" nylon tyre liner plus an additional 3mm rubber liner provide excellent protection from punctures and pinching.
Tyre dimensions: 38-622 / 700 x 38C
Weight: 960 g.
SADDLE / SEAT POST

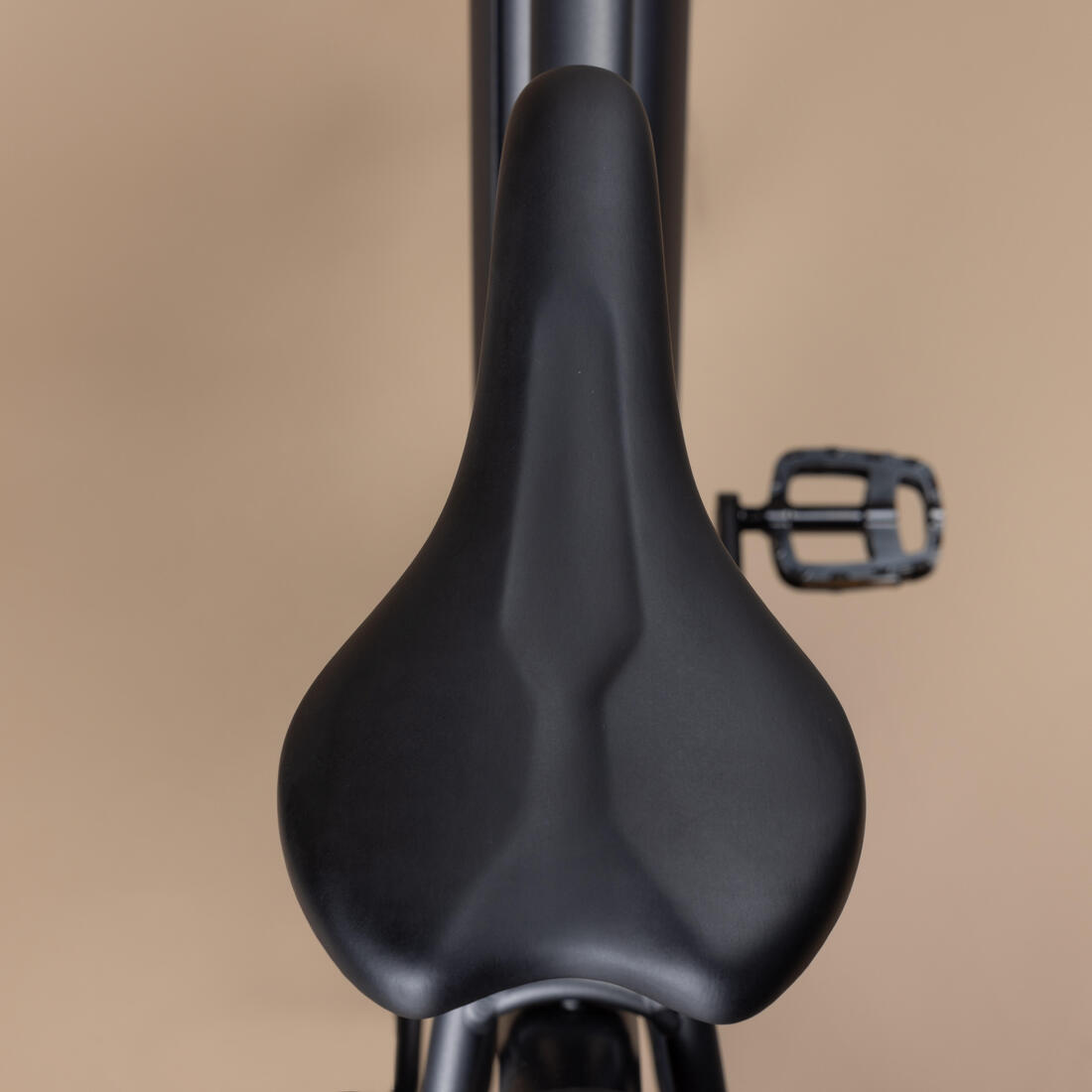

B'TWIN SPORT 500 foam saddle guaranteeing a comfortable ride.
Aluminium seat post, graduated for easier adjustment.
Seat post height = 350 mm.
Collar dimensions = 32 mm.
Seat post diameter = 31.2 mm.
Screw-on seat post to limit the risk of opportunist theft.

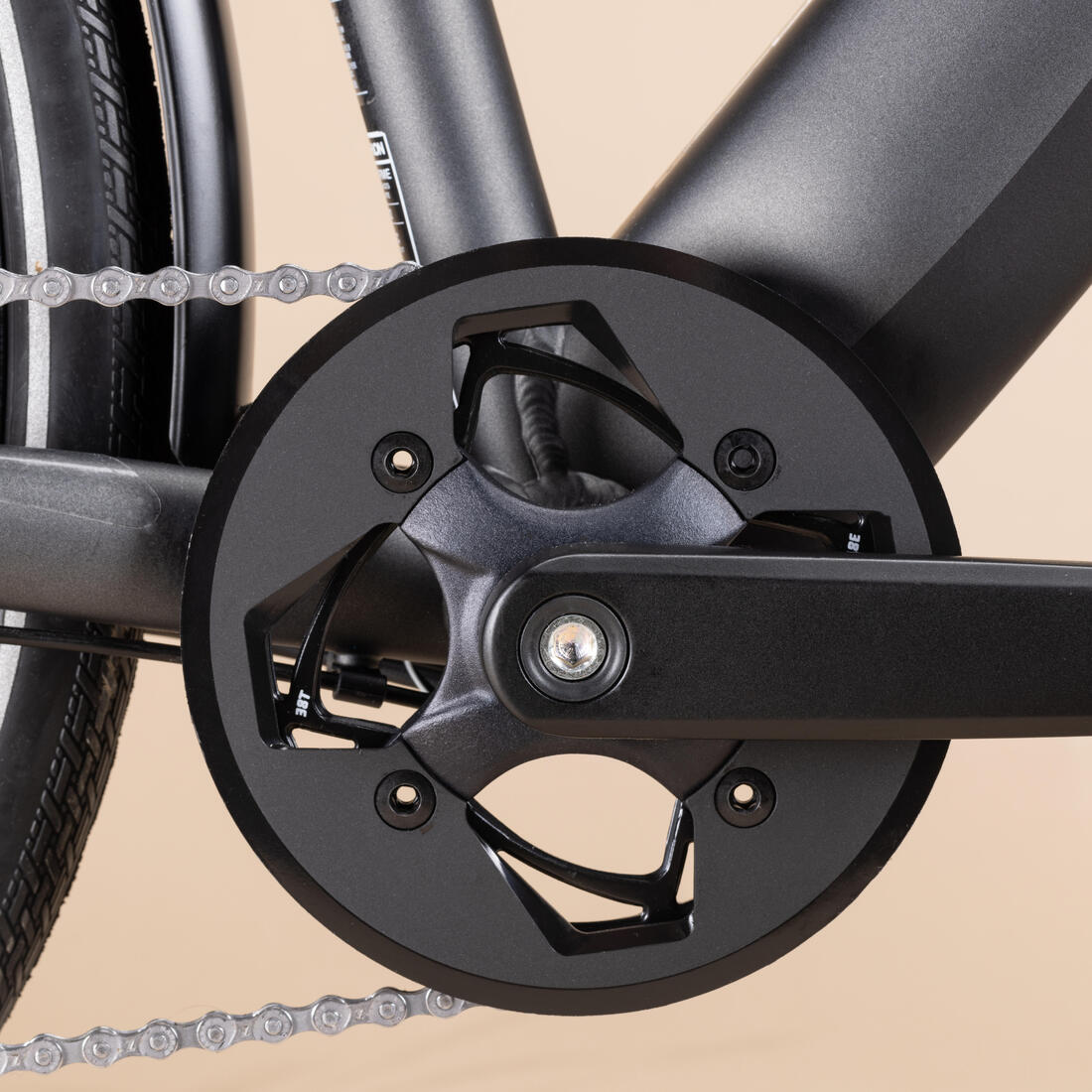

Bottom bracket / Pedals
Flat pedals with a metal axle and aluminium body.
Wide underfoot surface designed for comfort and grip.
170mm-long aluminium cranks.Internal bottom bracket houses a torque sensor, providing a natural pedalling sensation.
LIGHTS.

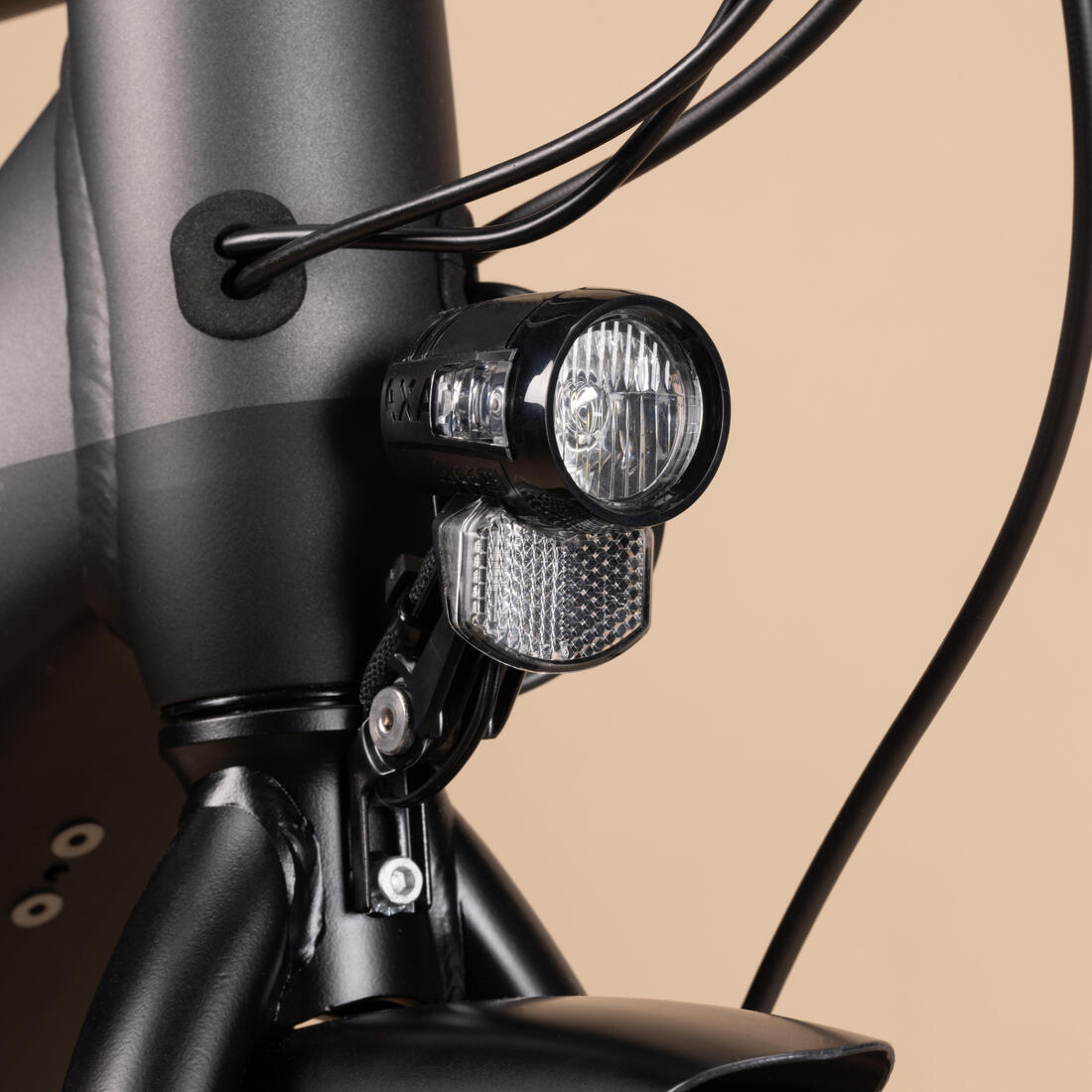

The powerful hub dynamo light lets you see and be seen so that you stay safe on the roads at all times.

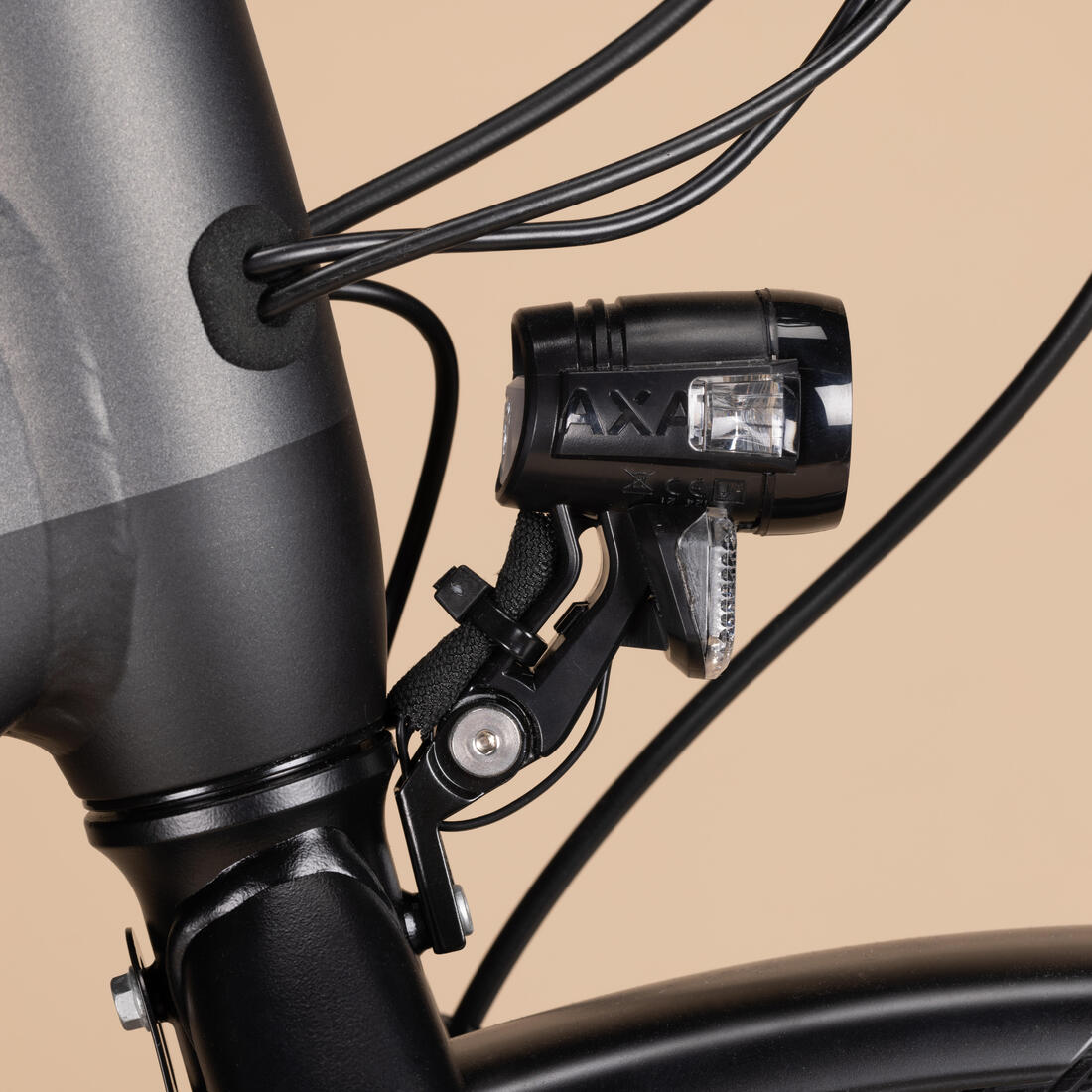

30 Lux AXA BLUELINE front light that lets you see 30 m and be seen from 3000 m (in-house test)

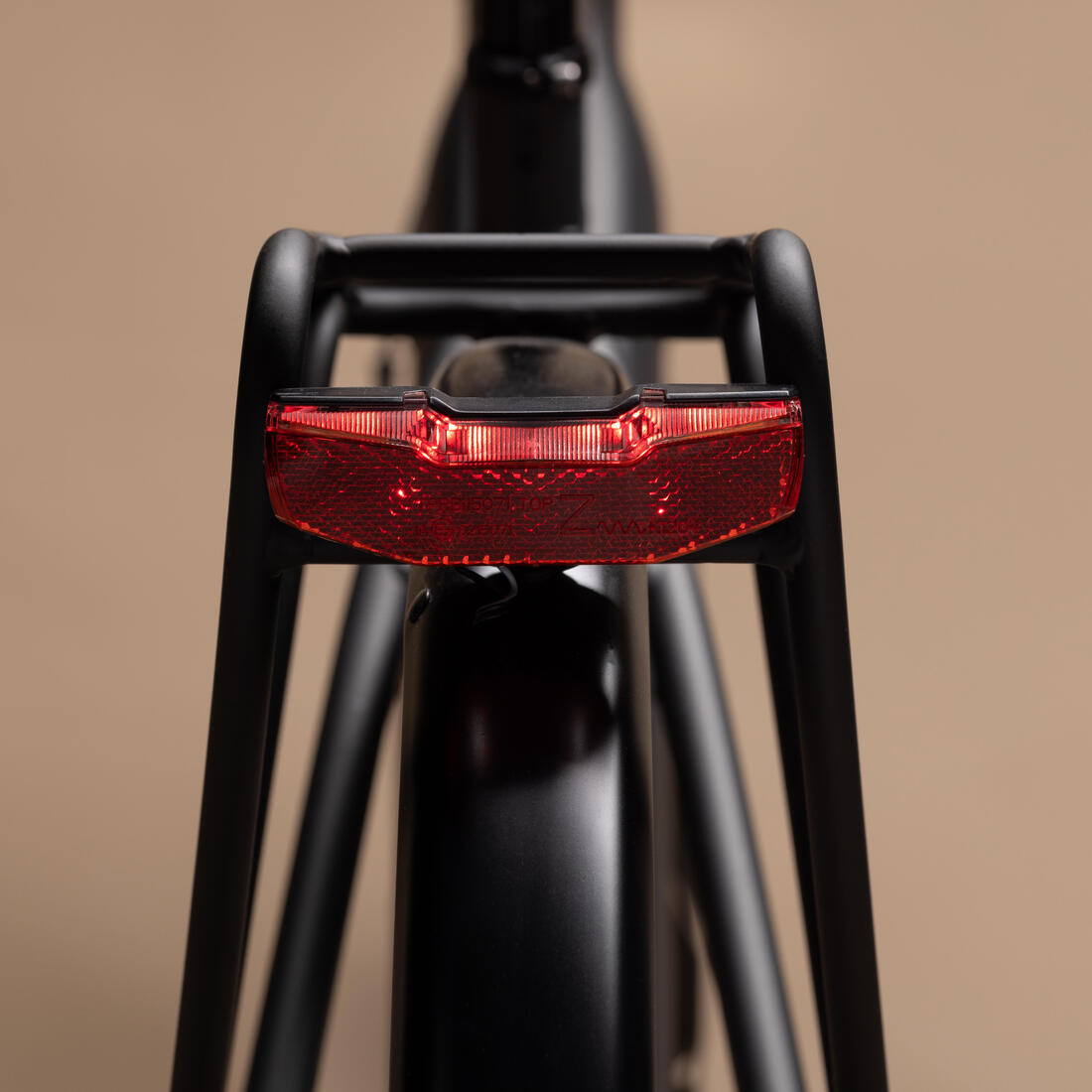

AXA BLUELINE rear light that lets you be seen from 600 m and 220°
The capacitor means that the rear light will stay on for 4 minutes when stationary, even if the bike is off.
Pannier rack / mudguard
So that you can carry your belongings and stay clean and dry in any situation, the bike is equipped with a pannier rack and mudguard that have been designed exclusively for this range of bikes.
The pannier rack can carry up to 27 kg, including a child seat. The 12 mm diameter tubes make it compatible with the entire Elops baggage range available at DECATHLON.
Mudguards with a screw-on double stay for maximum stability and solidity.

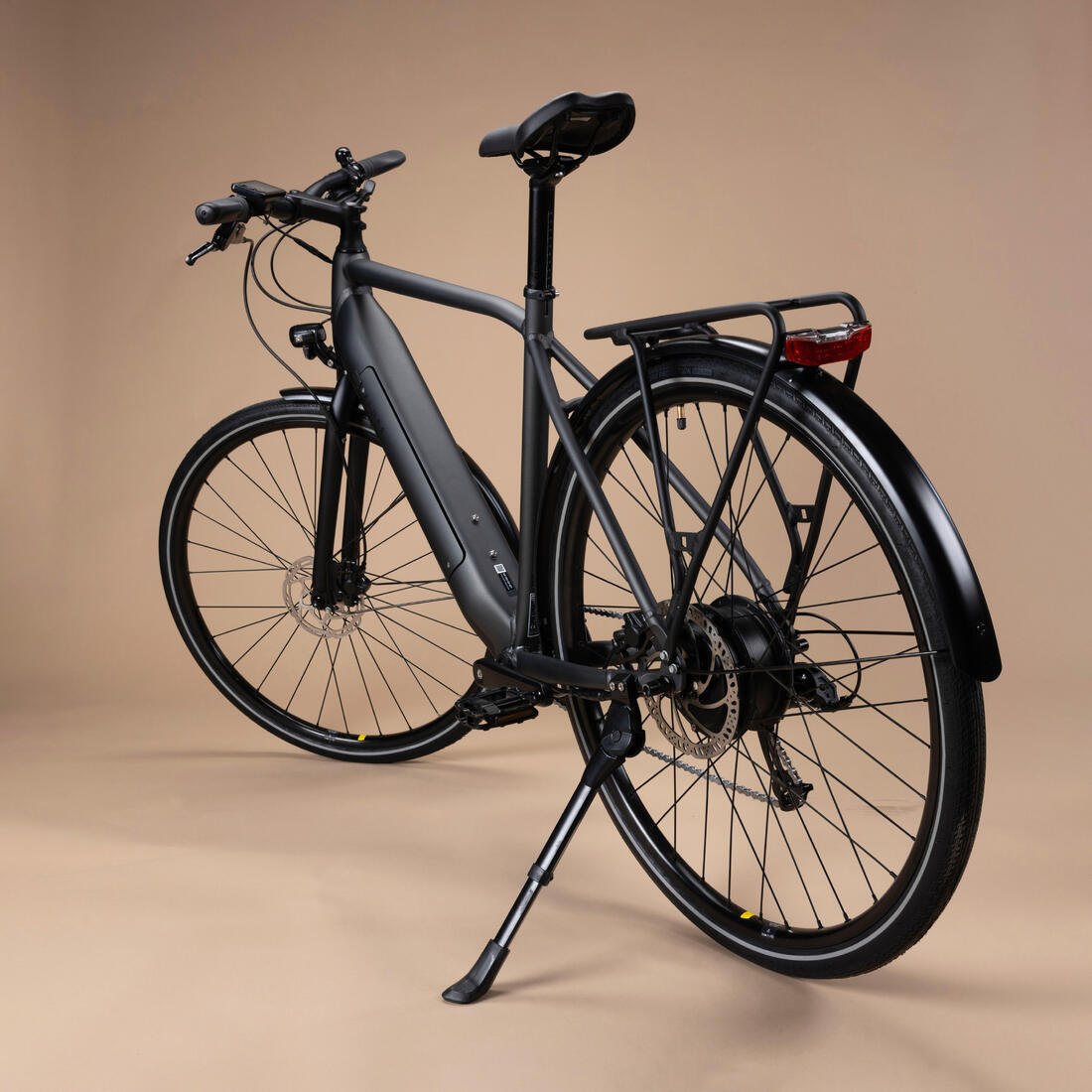

Stand.

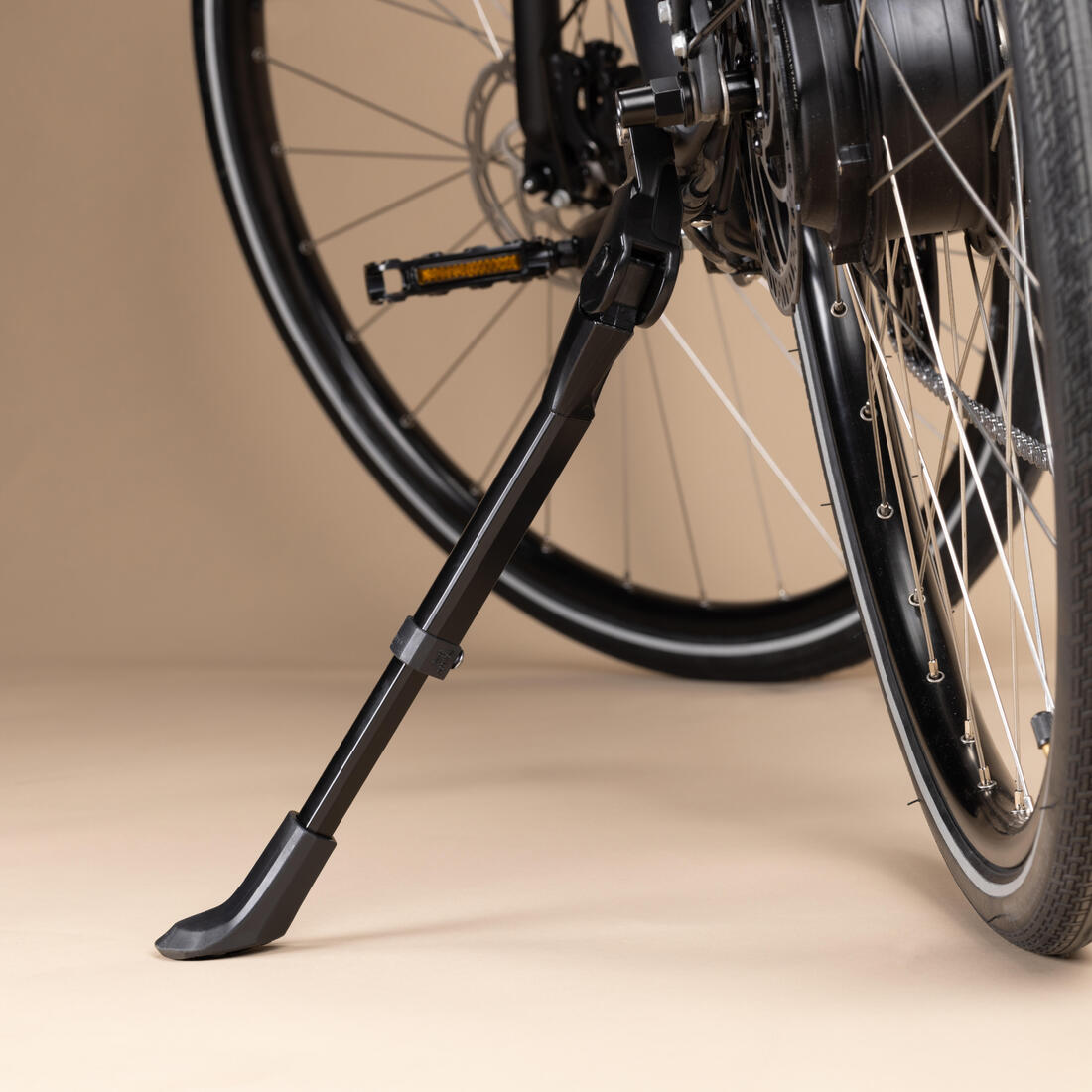

The aluminium rear stand can take loads of 35 kg to keep it stable when laden with pannier bags.
The rear stand doesn't touch the cranks when you push the bike forwards or backwards when stopping.
Compatible accessories.
The frame is equipped with bolts for attaching a folding lock and a ring lock-type frame lock that blocks the wheel.
The pannier rack can hold 27 kg, including a child seat and all of our ELOPS bags.
MAXIMUM WEIGHT
Maximum load: 150 kg, including bike, cyclist and belongings.
Looking for a fast and lightweight e-bike? This one is for you.
It has a 504 Wh battery and a powerful motor controlled by a torque sensor, delivering great pedalling assistance.
This bike is designed for daily commutes around town and cycling on paved roads. Its speed and power make it ideal for long trips and hilly rides.
